OUR EQUIPMENT:

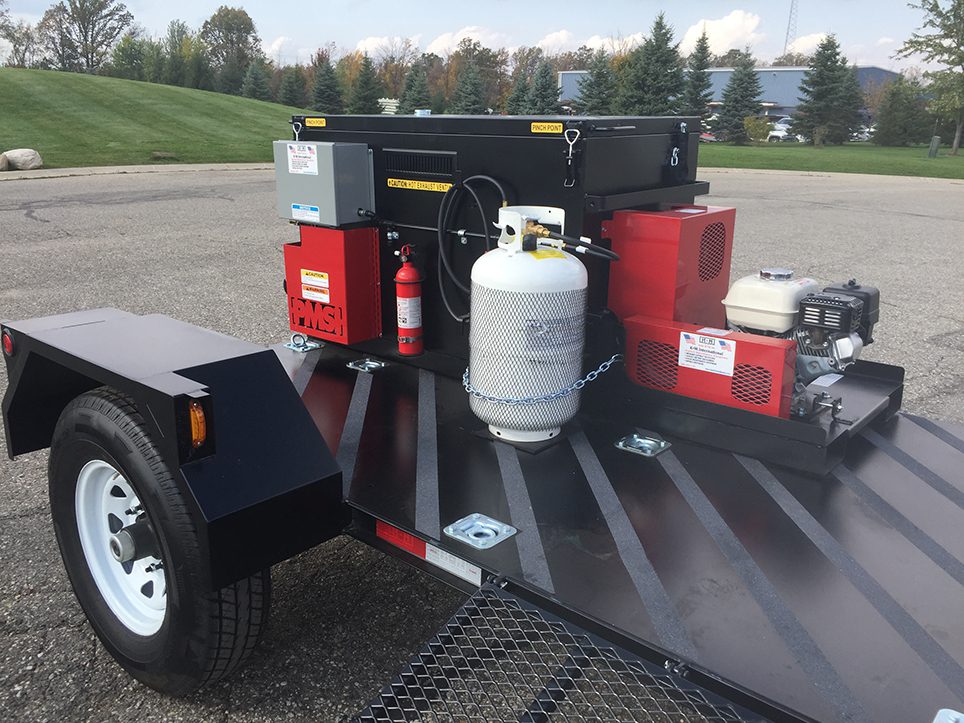

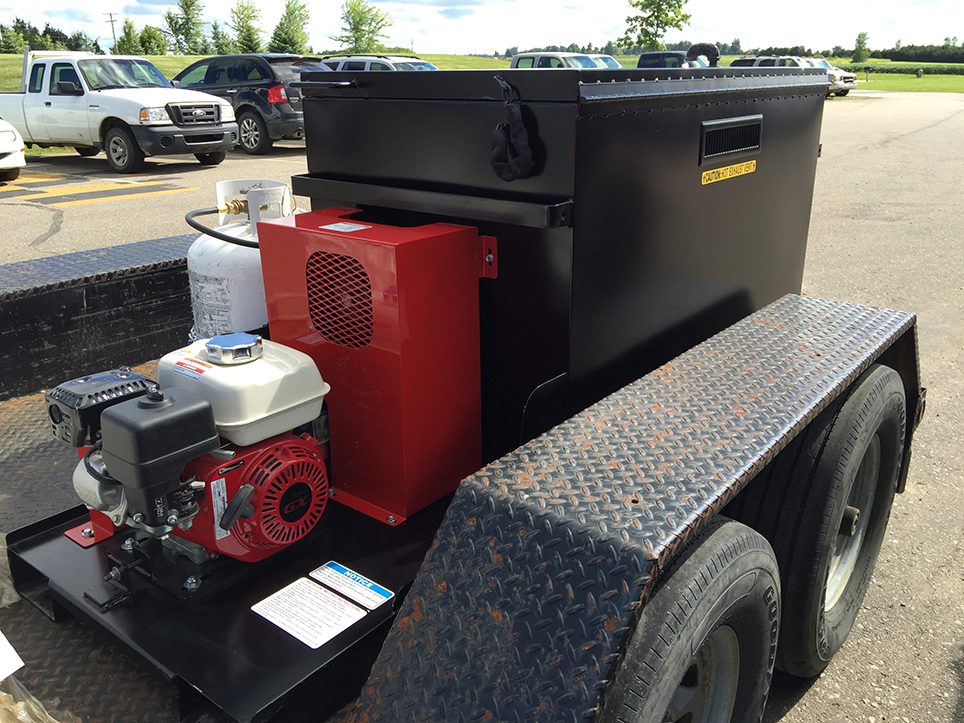

The Pro Patch 55 is a 55-gallon melter capable of melting asphalt mastic material, or asphalt rubber. The Pro Patch 55 is equipped with engine-driver agitation and is thermostatically controlled with automatic temperature monitoring.
FEATURES:
- Heating Efficiency: Thermostatically controlled heating systems. Material is ready for application in 45 minutes- 1 hour.
- Fuel Efficiency: Uses half the amount of propane as direct fire melters.
- Heat Retention: Air Jacketed with three layers of high efficiency insulation

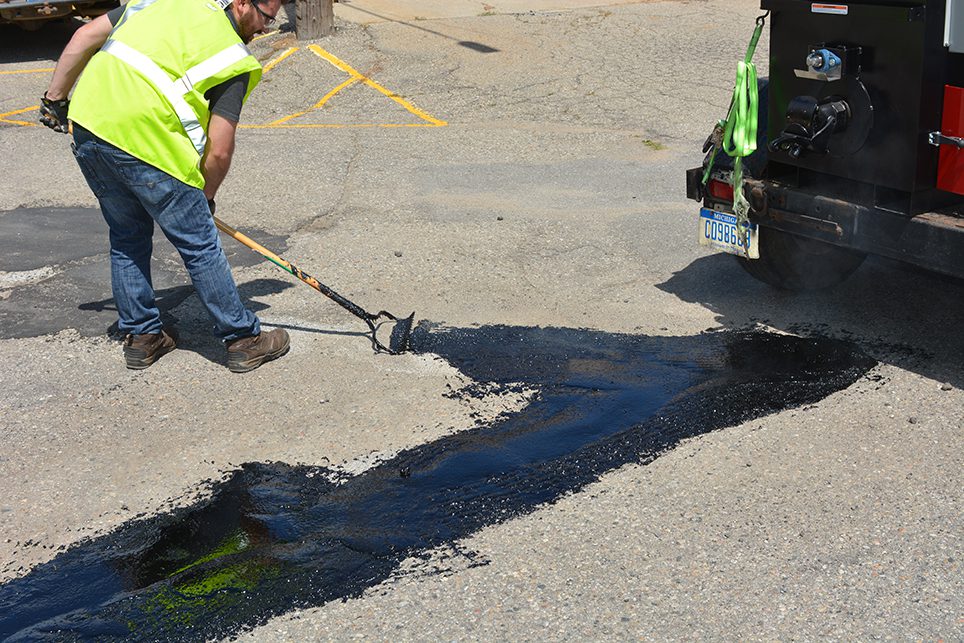

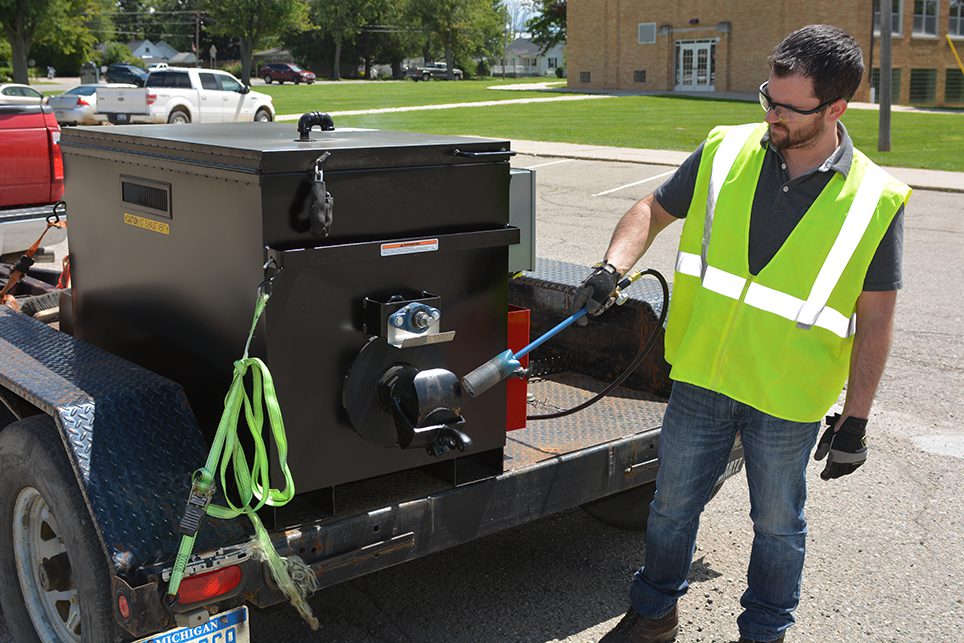

- Easy Pour: 4” Flow valve allows for the user to apply mastic directly into the application area.

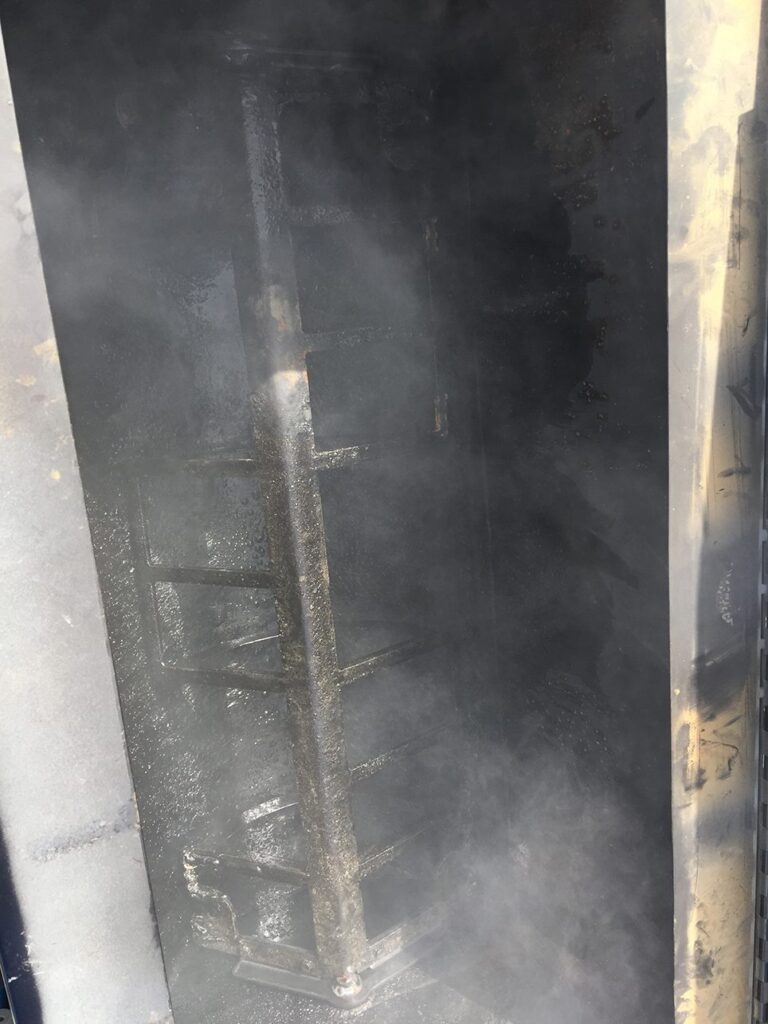

- Agitation System: Engine driven 360˚ agitation system.
* Includes utility hand torch to heat flow valve, tools, etc.
SPECS:
- Dimensions (L x W x H): 87″ x 34″ x 34″
- Weight – 585 Lb. (Unloaded): 1435 Lbs. (Loaded)
- Capacity – 55 Gallons
- Thermostat – 100-500˚F
- Heating Element – 60,000 BTU Propane Burner
- Insulation – High efficiency with reflective metal
- Agitation – Engine driven agitation system
- Construction – 16G Skin, 14G Funnel, 20G Lid
Hearing, eye, and protective clothing must be worn while operating this machine
