BRIDGE WATERPROOFING
Waterproofing
Water kills bridges. Water seeps through the pavement eroding the structure and corroding interior metal supports. Waterproofing the bridge deck, can prevent water, chemicals, and debris from reaching the bridge structure.
Ultraseal

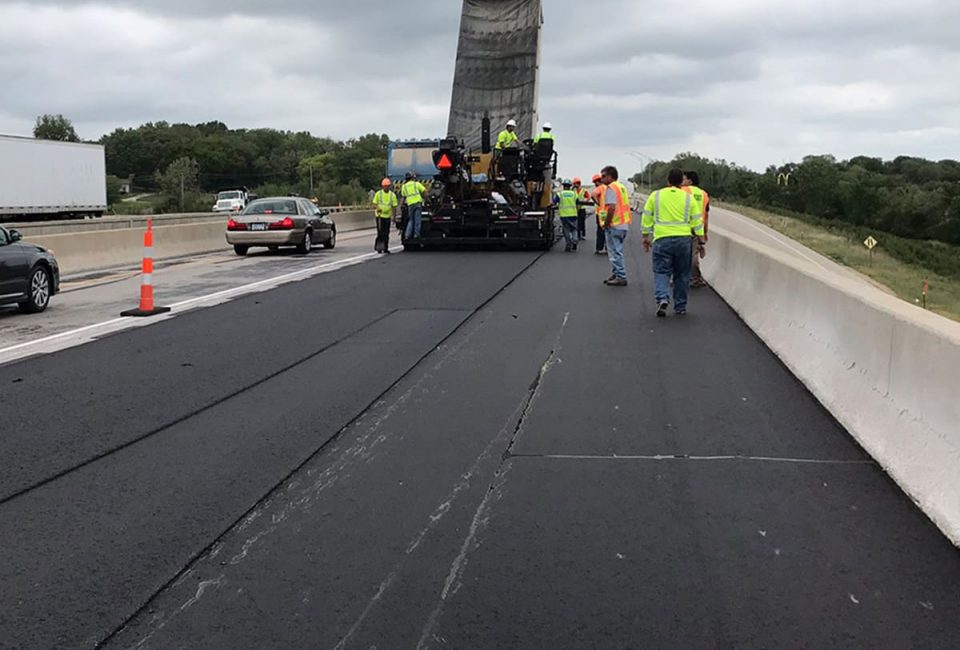

Ultraseal Waterproofing System is a build in place, multilayer system used to protect bridges from chlorides, moisture and other harmful elements. Bridge repairs are costly and inconvenient. Ultraseal helps prevent deterioration of the bridge deck and underlying structure, saving money and ultimately extending the service life of your bridge.
PavePrep®

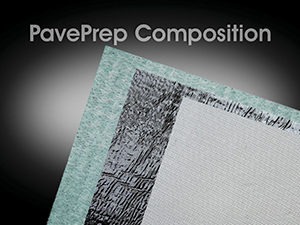

PavePrep geo-composites are high-density mastics laminated with tough woven polyester designed to withstand the loads encountered by highway traffic and stress concentrations at pavement joints and cracks. The dense and flexible PavePrep mastic reduces crack reflection through the overlay.
PavePrep SA is a heavy duty high strength waterproofing membrane that is 0.135 inch (3.4mm) minimum thickness and is composed of a flexible, high density asphalt mastic bitumen between a top layer of heat resistant, high strength woven polyester reinforcing fabric and a bottom layer of non-woven heat resistant polyester fabric with a polymer modified asphalt self-adhesive layer and removable release liner. The high strength fabrics provide increased reinforcement and cracking resistance.
PavePrep TSA is composed of the same fabrics and asphalt layers as PavePrep SA, but is thinner with thickness of 0.080 to 0.115 inch (2.0-2.9mm).
Features and Benefits
- Easy installation
- Minimal traffic disruption
- Minimizes moisture penetration
- Reduces structural deterioration
- Increases overlay life
Ultraseal Products
The Ultraseal Waterproofing System is a built up multi-layer system used to protect the pavement surface from chlorides, water penetration and other harmful materials. The system is made up of four parts – Ultraseal Primer, Ultraseal Reinforcing Fabric, Ultraseal Bridge Deck Membrane, and Ultraseal Protection Board. The proper installation and layering of these products creates a waterproof barrier that protects bridges from water damage.

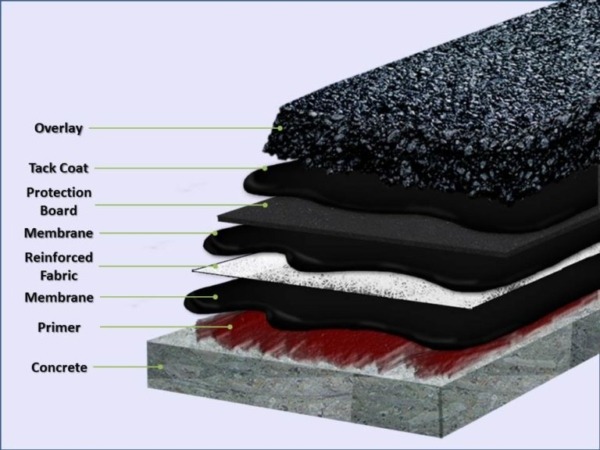

System at a Glance
- Overlay
- Tack Coat
- Ultraseal Protection Board
- Ultraseal 3750 MTO
- Ultraseal Reinforcing Fabric
- Ultraseal 3750 MTO
- Ultraseal Primer
Visit UltrasealProducts.com for more information.
Content provided by Crafco, Inc.
