OUR EQUIPMENT:

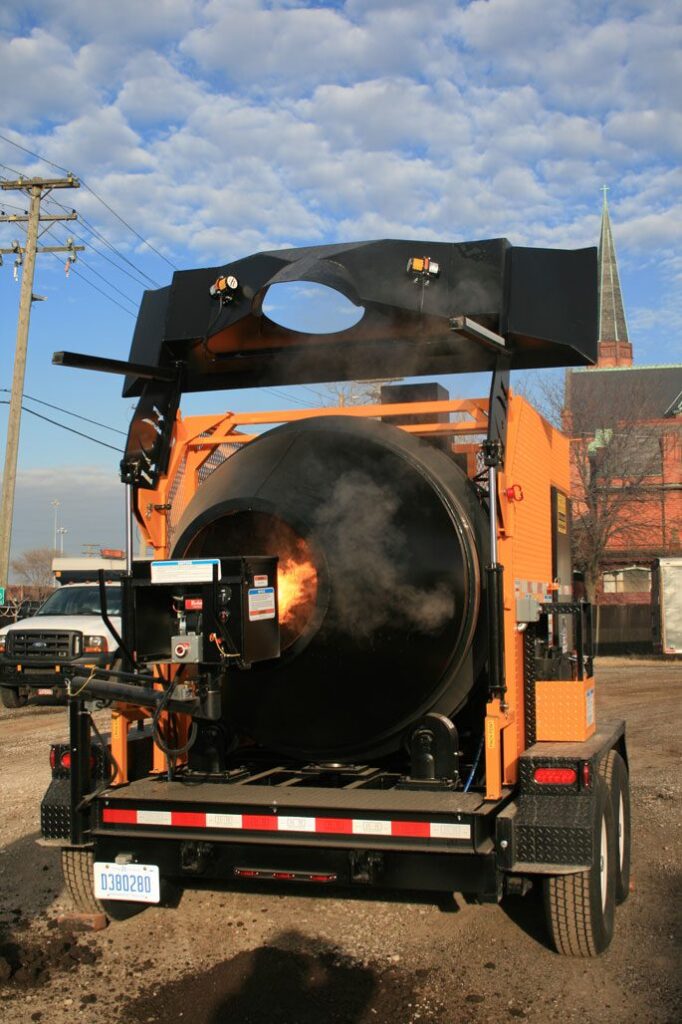

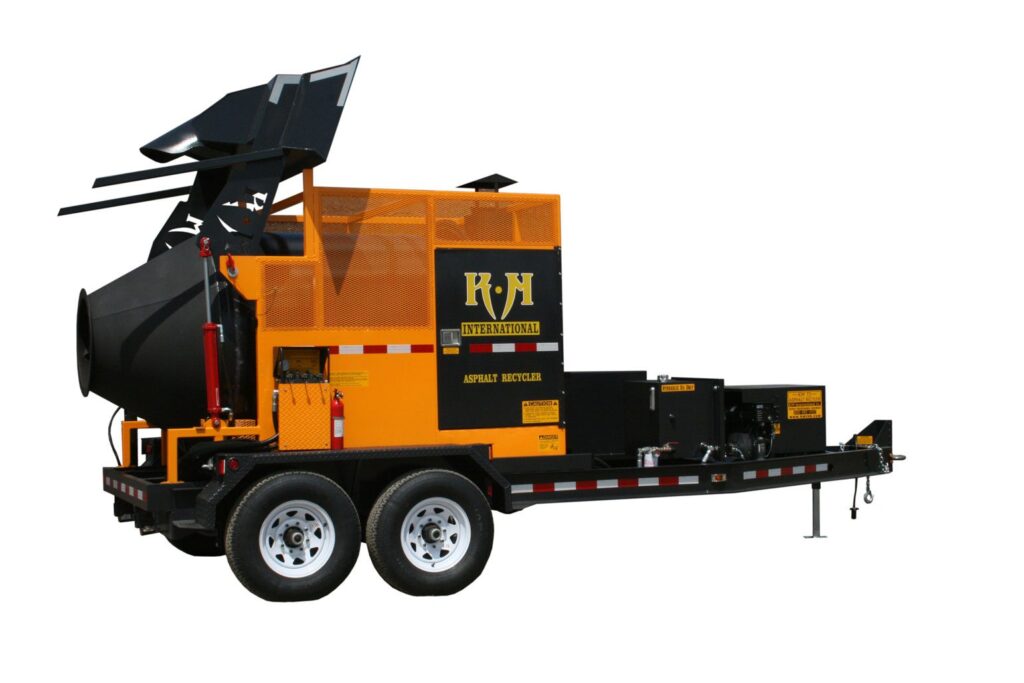

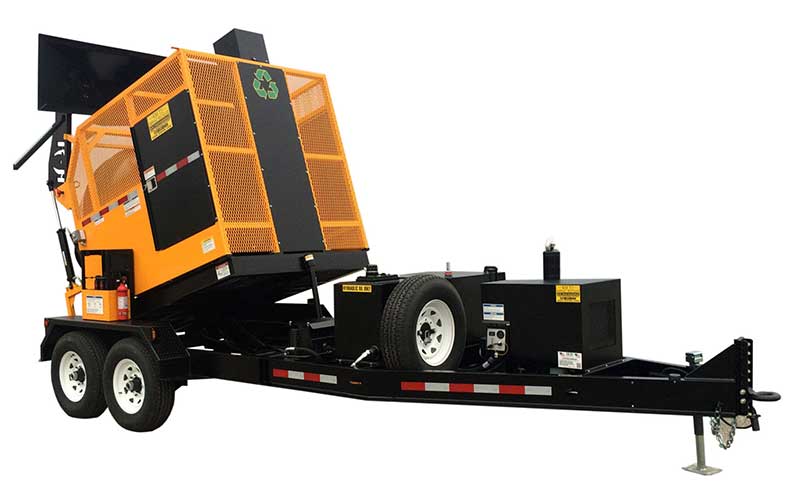

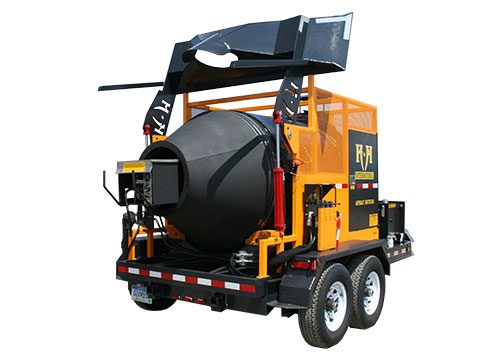

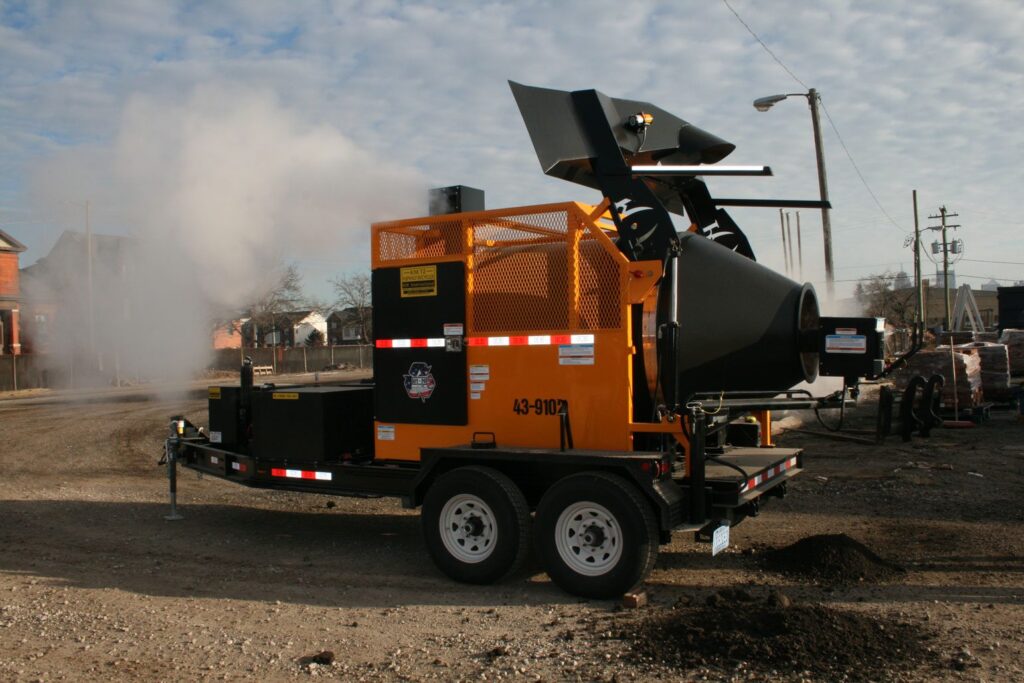

The KM T-2 is an asphalt recycling machine capable of producing 4 tons of hotmix asphalt in an hour. The KM T-2 asphalt recycler trailer will recycle asphalt millings, chunks, and other RAP material into plant-grade asphalt. The KM T-2 allows contractors the ability to perform year-round repairs with quality hotmix asphalt material.

FEATURES:

• Cost Savings: Asphalt for $15-25 a ton compared to $60-75 at the plant or $110 + for cold patch
• Efficiency: Produces a load of 2,600Lbs. every 15-20 minutes or Approx. 4 tons/hr.
• Reliability: Recycle millings into plant quality or better mix year round. NO DIRECT FLAME IMPINGEMENT ON MATERIAL
• Green Process: No longer do you have to throw out old chunks or millings
• Versatility: Ability to add as much or as little asphalt cement as you want to completely customize you mix design
• Profitability: If you are an asphalt producer you now have the ability to keep key customers supplied with HMA year round
• Time Saving: Skip the long lines and hassle at the asphalt plant by using the T-2 to produce HMA at your shop or on the job site

TRAILER SPECS:

• Dimensions (l x W x H) – 23’1” x 8.3’ x 9′
• Weight – 8,600 Lbs.
• Top Opening (L x W)- 26” x 94”
• Axels – Dual 7,000 lbs. axels, w/ electric brakes on all wheels
• Construction – 8” Channel steel with 2 ½” x ¼” square tubing support members
• Actuators – (2) 2” x 16” hydraulic cylinders

ASPHALT HEATING DRUM:

• Construction – 3/16” steel: 450 Brinell hardened
• Agitation Paddles – (7) 3/16”: 450 Brinell Hardened
• Rotation – Hydraulically controlled, approx. 9 RPM

HYDRAULICS:

• Reservoir – 30 Gallon
• Pump – 9.5 gal./minute
• Motor – 38 cubic inch

HEATING SYSTEM:

• Fuel – No. 1 or 2 Diesel, B-5 bio-diesel, or kerosene
• Fuel Storage -80-gallon fuel tank with filter and manual shut off
• Burner type – Beckett Model SDC
• BTU Output – 700,000
• Engine – 21 BHP Kubota

LOADING/UNLOADING:

• Loading – Milled asphalt or broken chunk pieces up to 12”

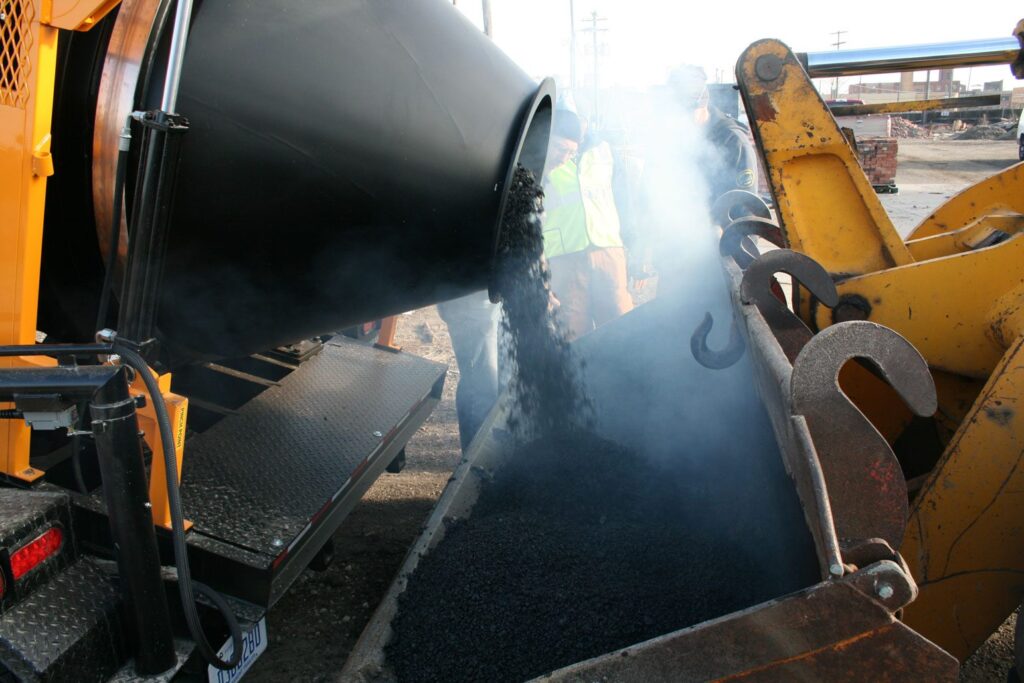

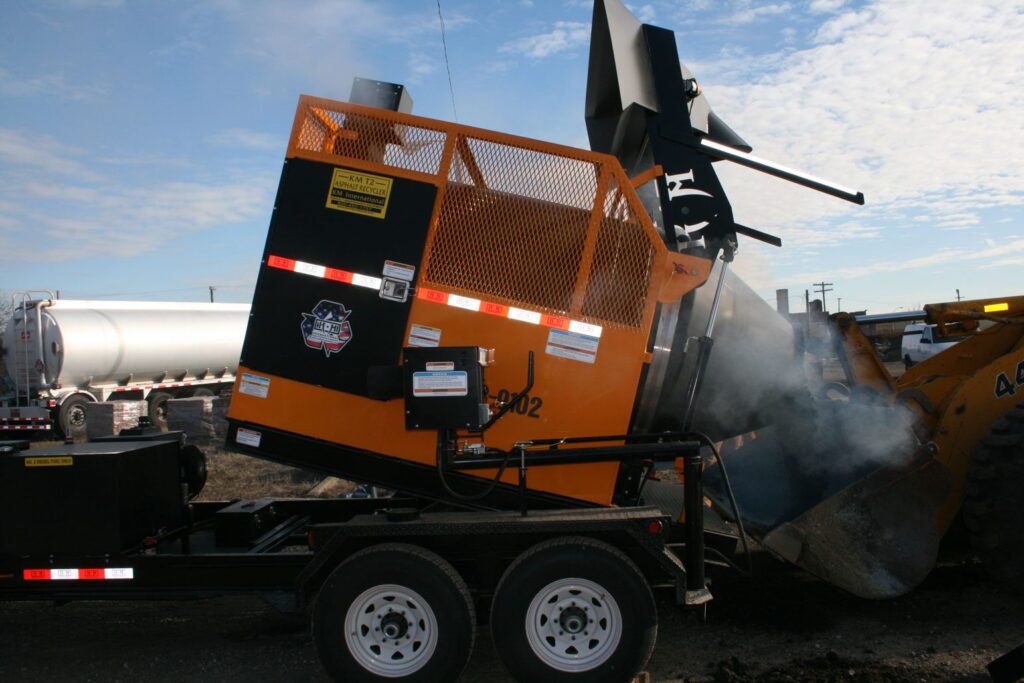

• Unloading – Unload directly into application area or into front end loader bucket

OUR EQUIPMENT:

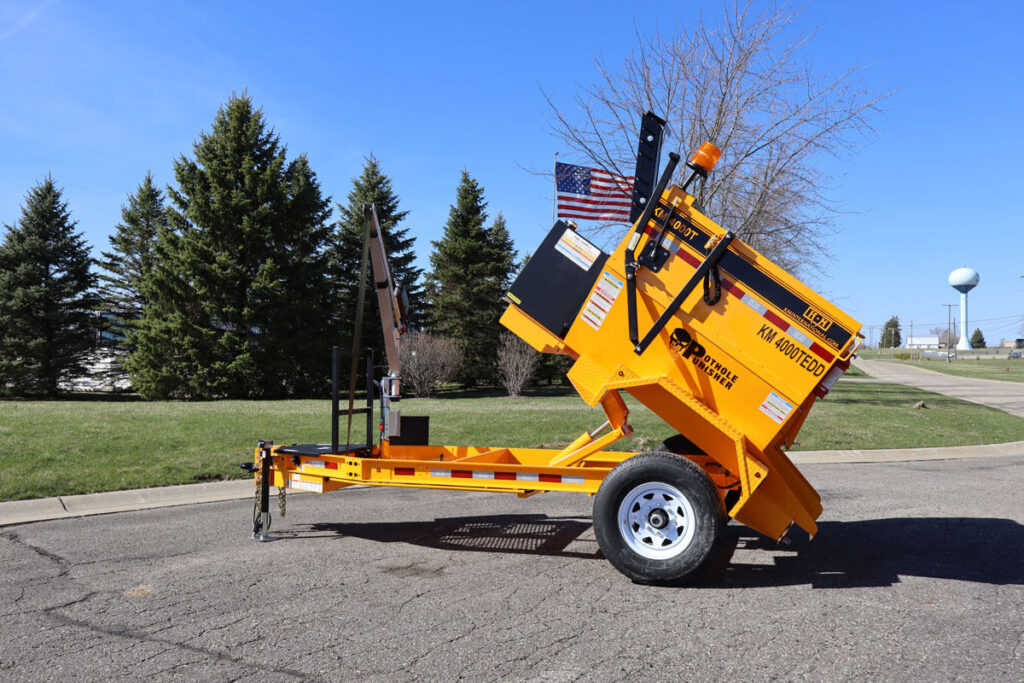

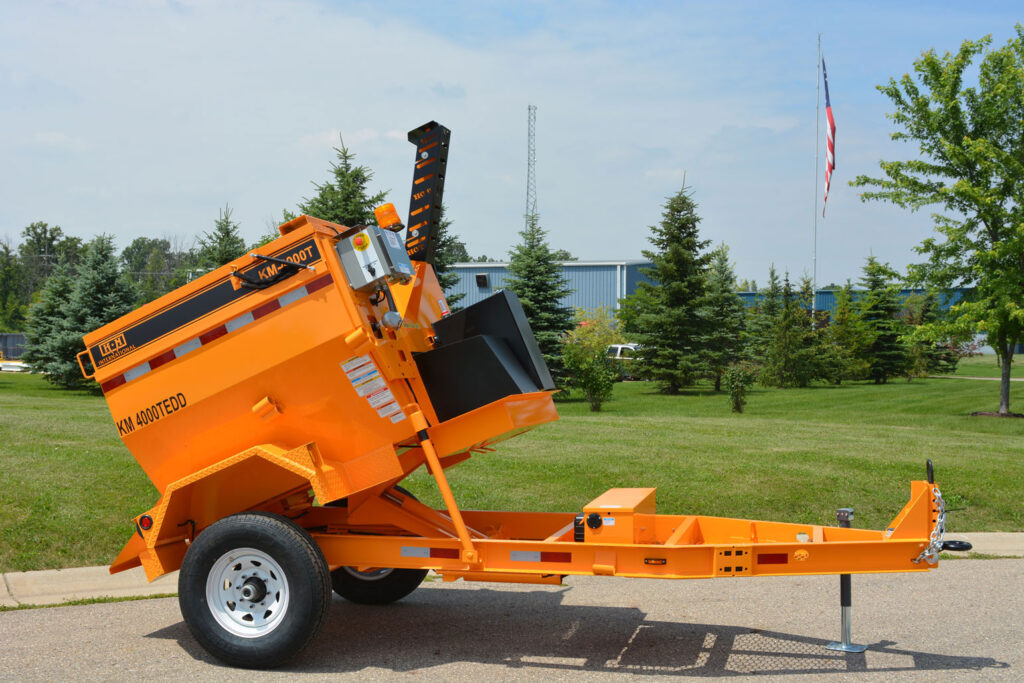

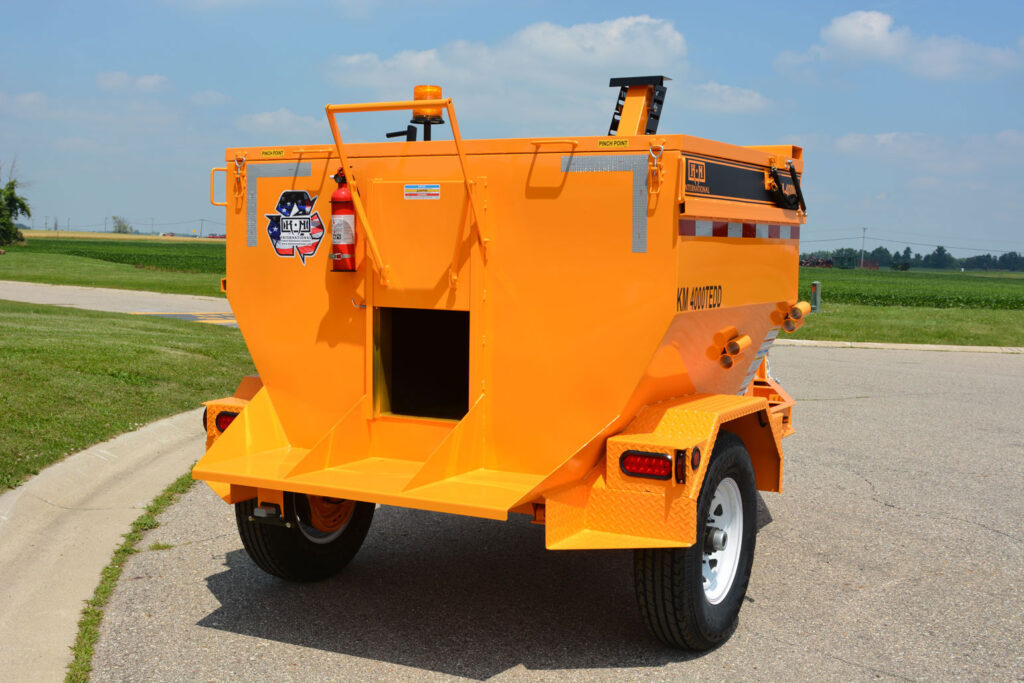

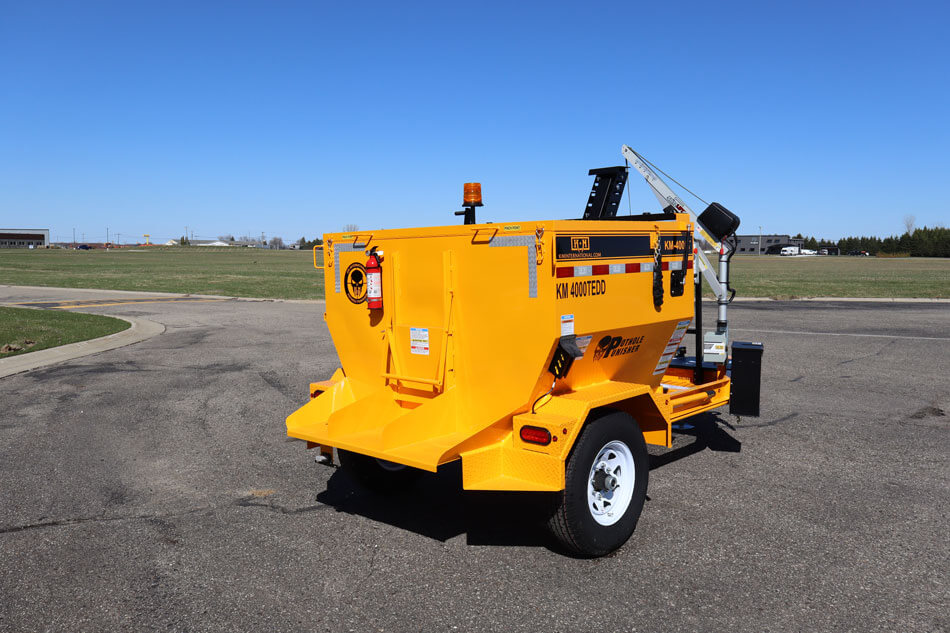

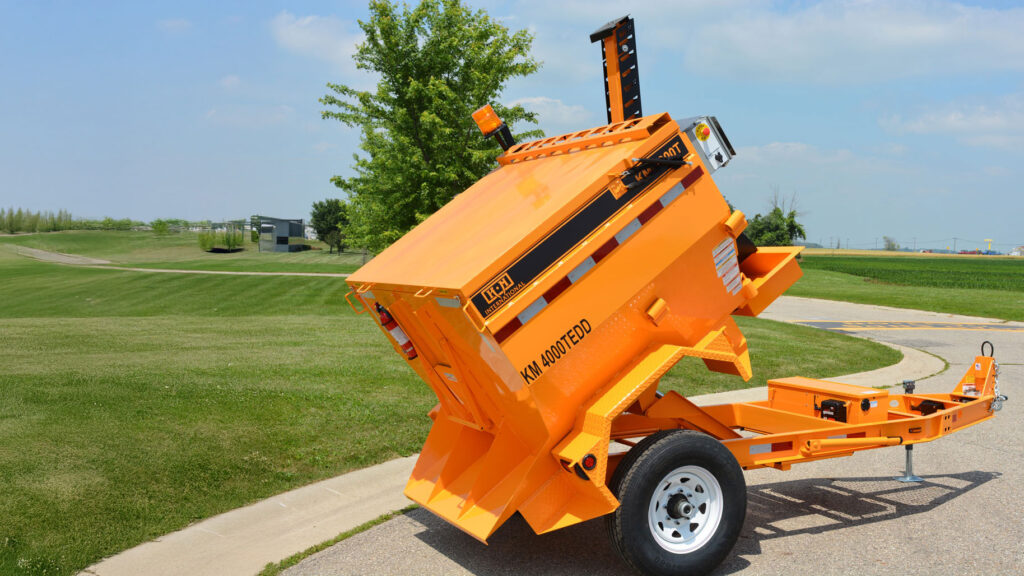

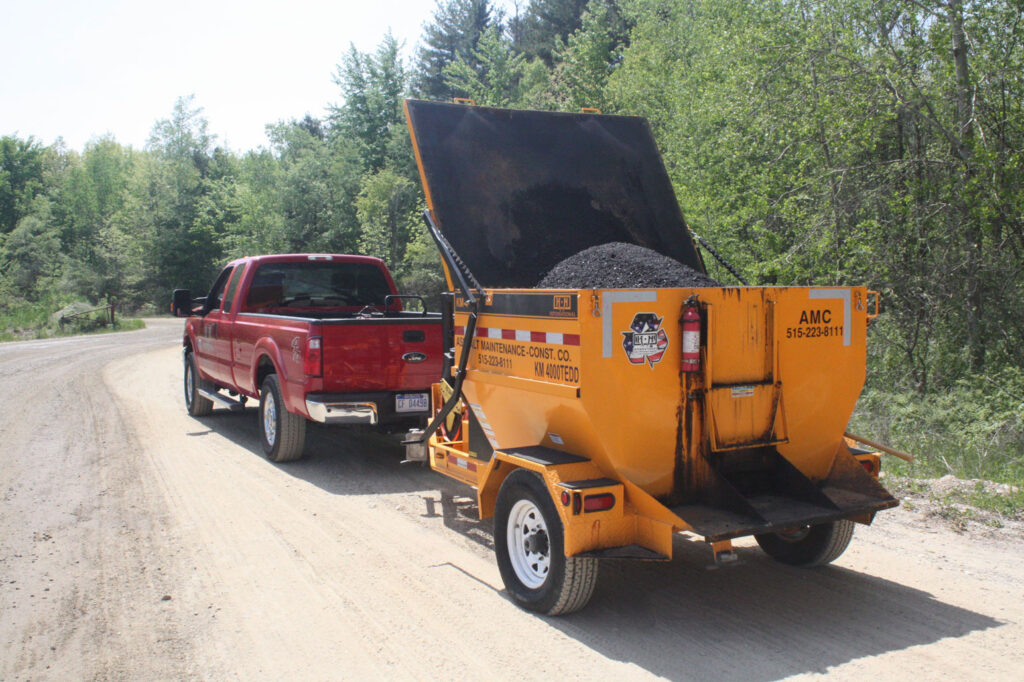

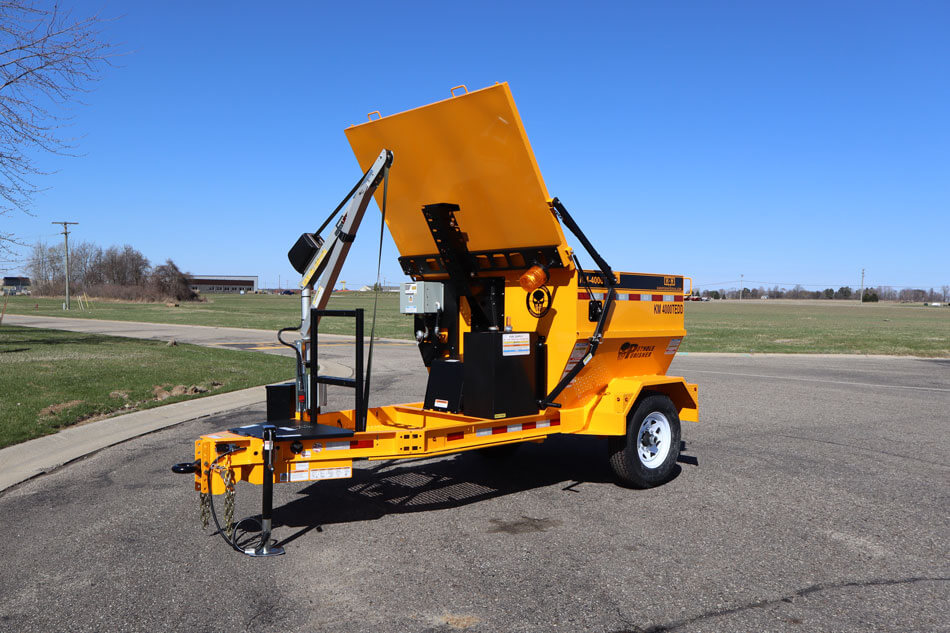

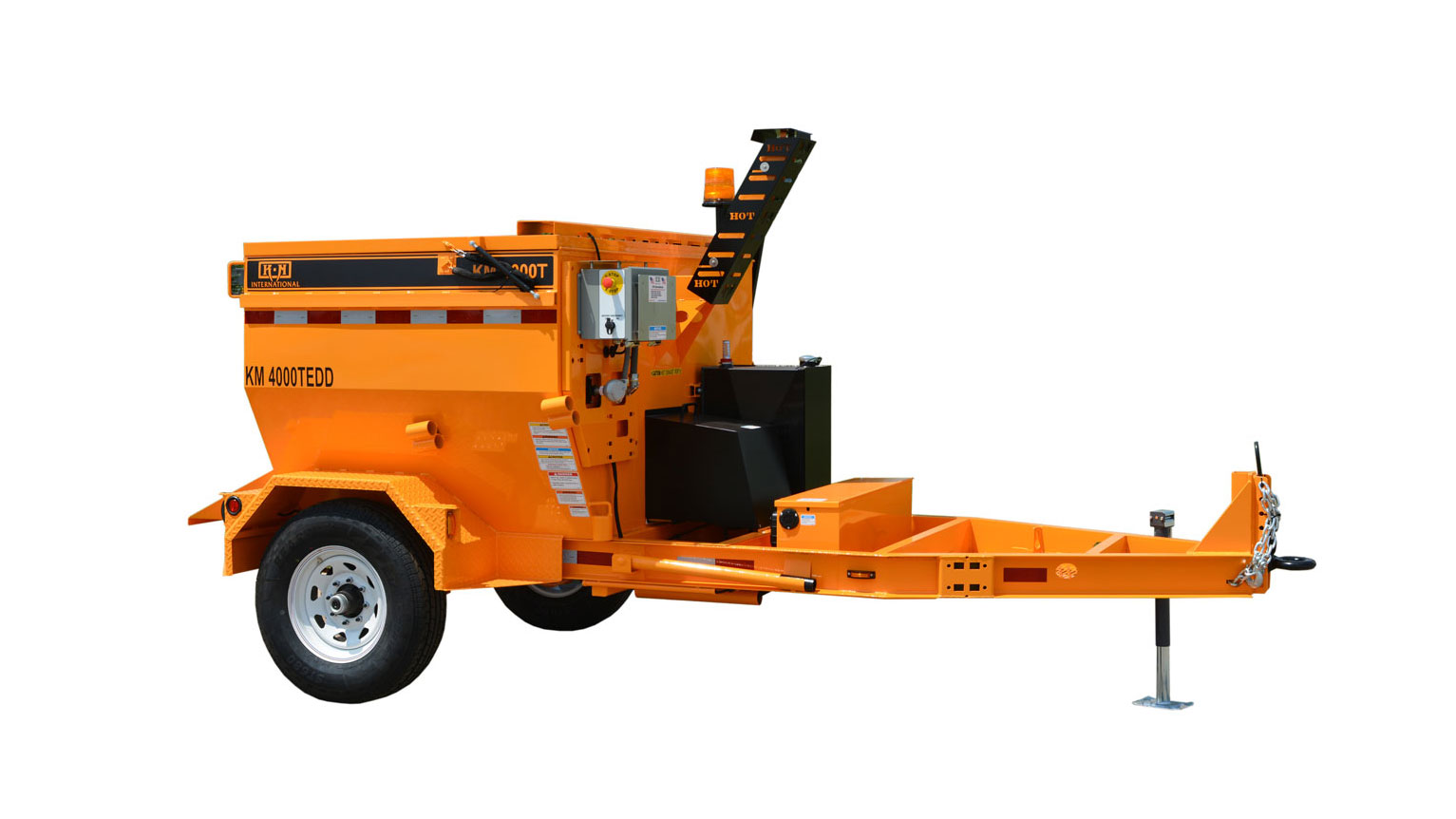

The KM 4000T is a 2-ton, trailer-mounted asphalt hotbox reclaimer capable of maintaining asphalt temps for up to 2 days. It also can reclaim excess or bulk-stored hotmix overnight. The KM 4000T is designed to increase the effectiveness and efficiency of your asphalt repair operation.

FEATURES:

• Heat Retention: Triple Wall Construction with high efficiency insulation

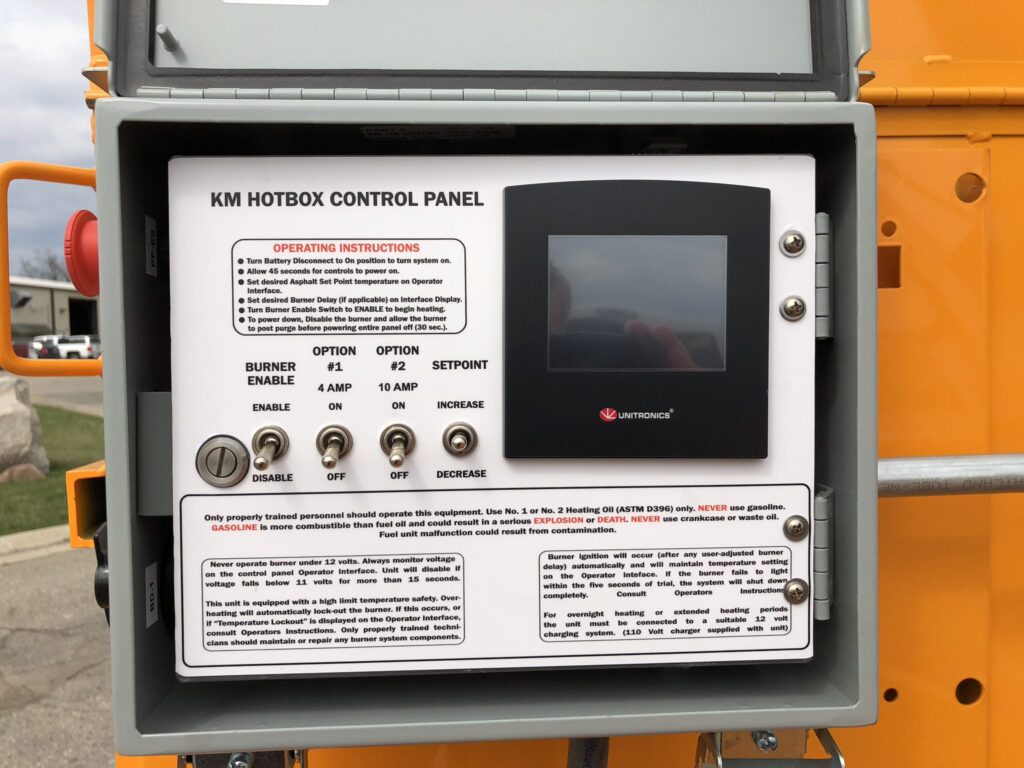

• Temperature Control: Thermostatically controlled heating system for better fuel efficiency
• Cost Savings: Maintain HMA for up to 48 hours or Reclaim bulk stored virgin HMA

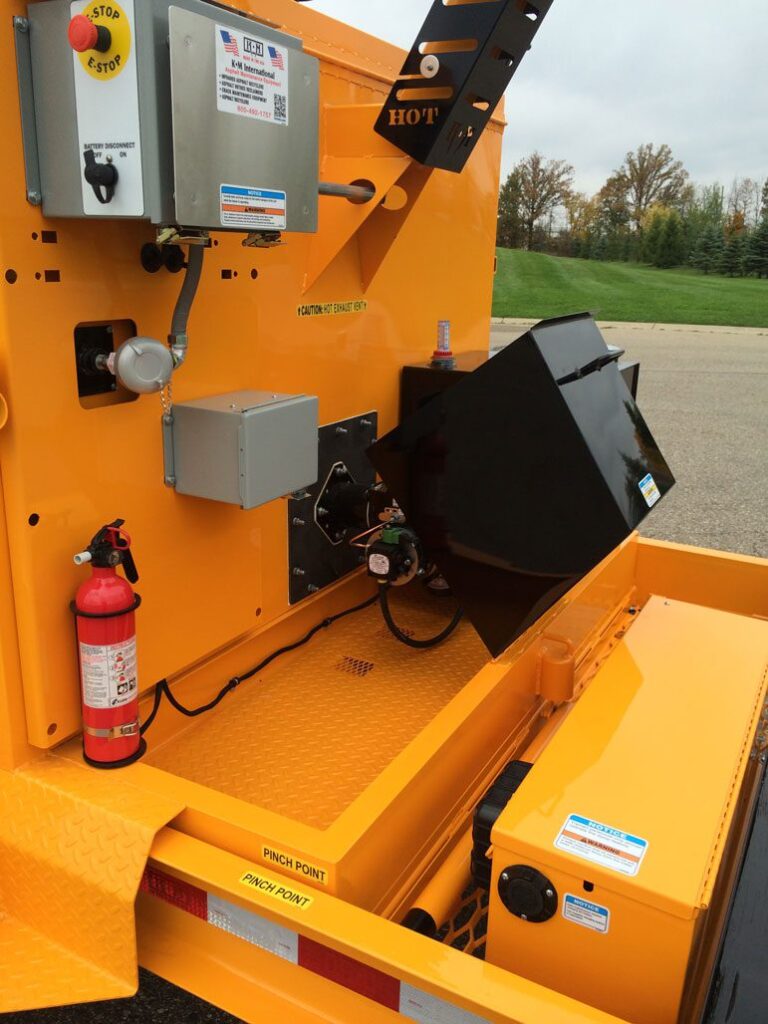

• Low Maintenance: Burner and key components mounted above frame and in steel enclosure
• Ease of Use: Front to back loading doors with cantilevered handle

*Diesel or Propane Fired
*52˚ Dump feature (additional option)

SPECS:

• Dimension (Lx W x H) – 14’ x 83” x 88” (Dimensions Vary Based on Options)
• Weight – 2,180 Lbs.
• Capacity – 4,000 Lbs.
• Heating element – Propane: 58,000 BTU or Diesel: 105,000 BTU
• Filling Door – Single insulated filling door, Single cantilever handle
• Shovel Door – Single insulated shovel door
• Insulation – 2”-3” of high efficiency insulation
• Construction – All welded: 16G Skin, 12G asphalt compartment
• Trailer Capacity – 7,000 Lbs. GVWR
• Axle – Single 7,000 Lb. , standard electric brakes
• Tire and Wheels – 3,520 LR E (each)
• Warranty – 2-year warranty parts and workmanship

*5-year warranty of trailer frame structure

*Specifications subject to change without notice

OUR EQUIPMENT:

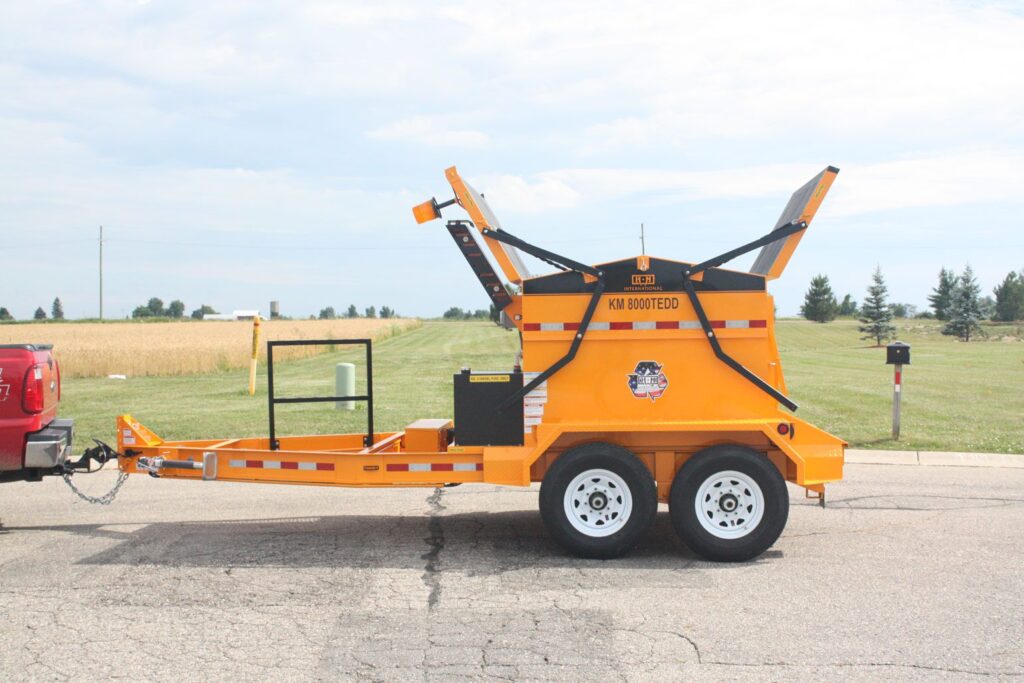

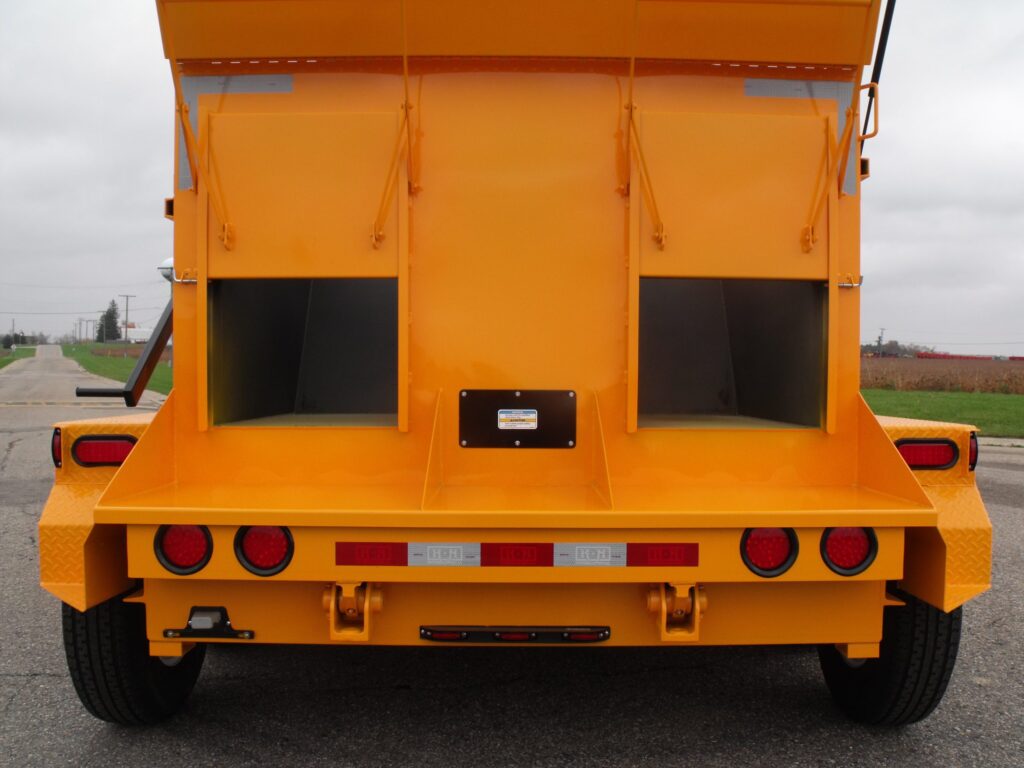

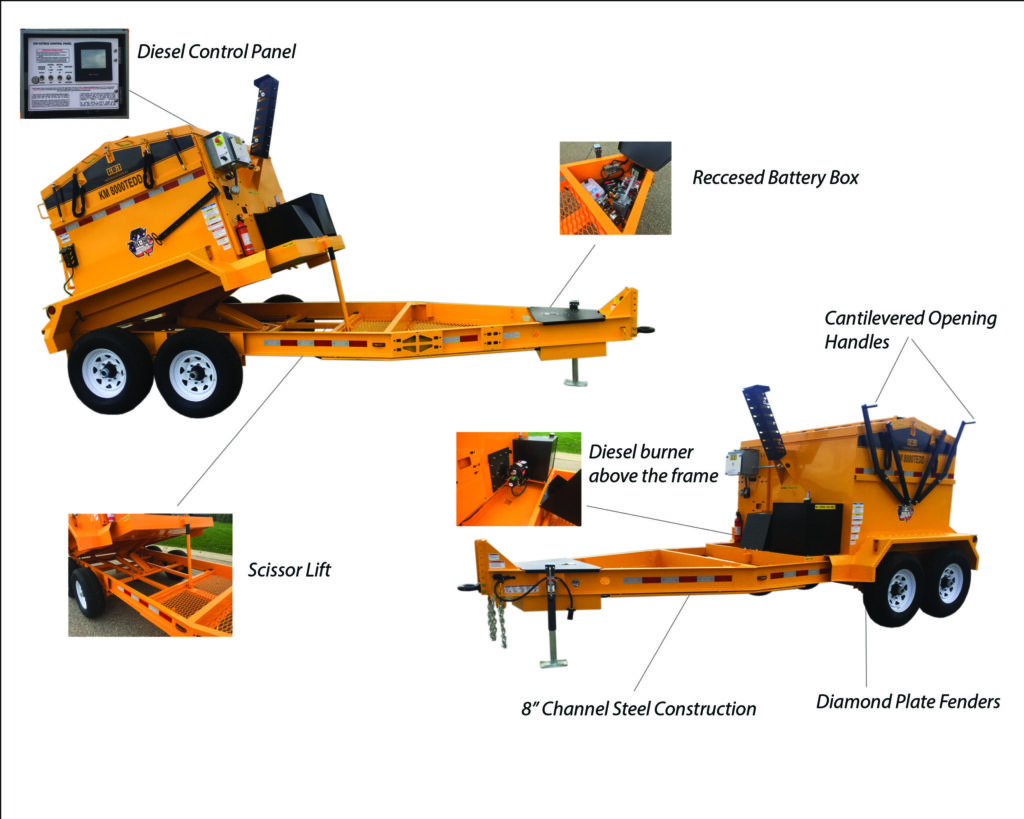

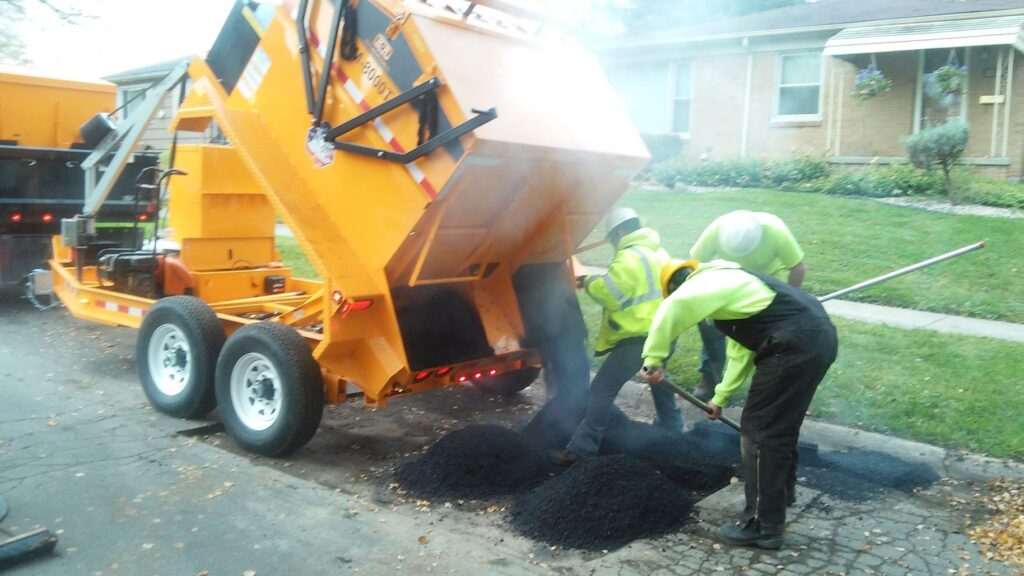

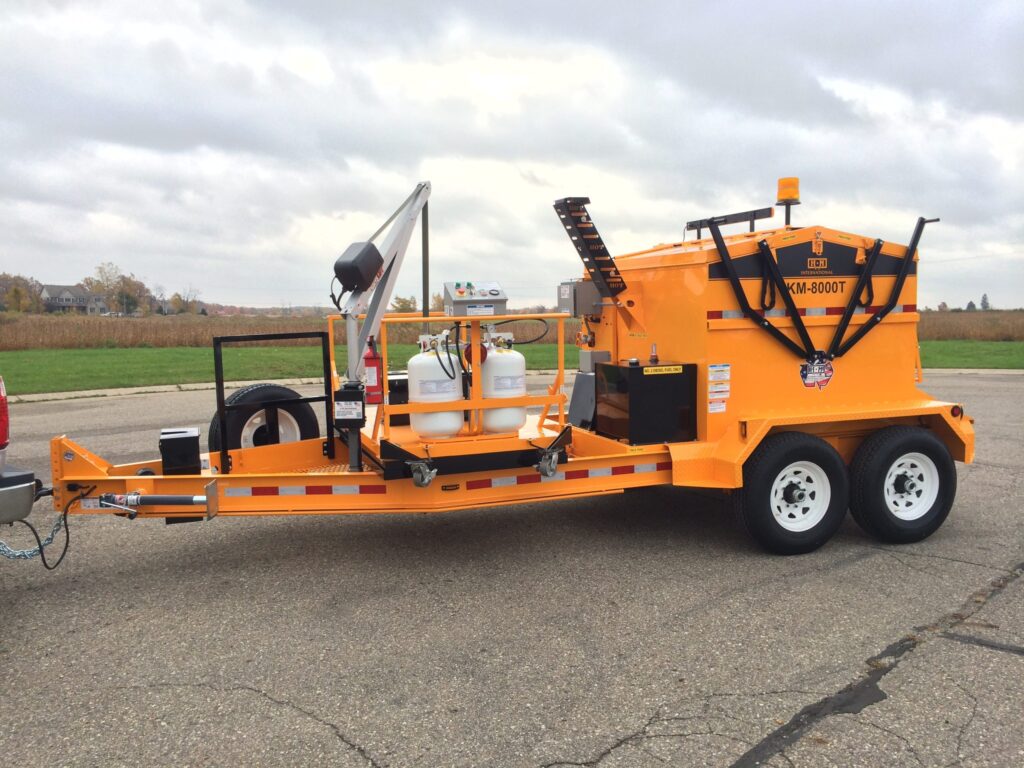

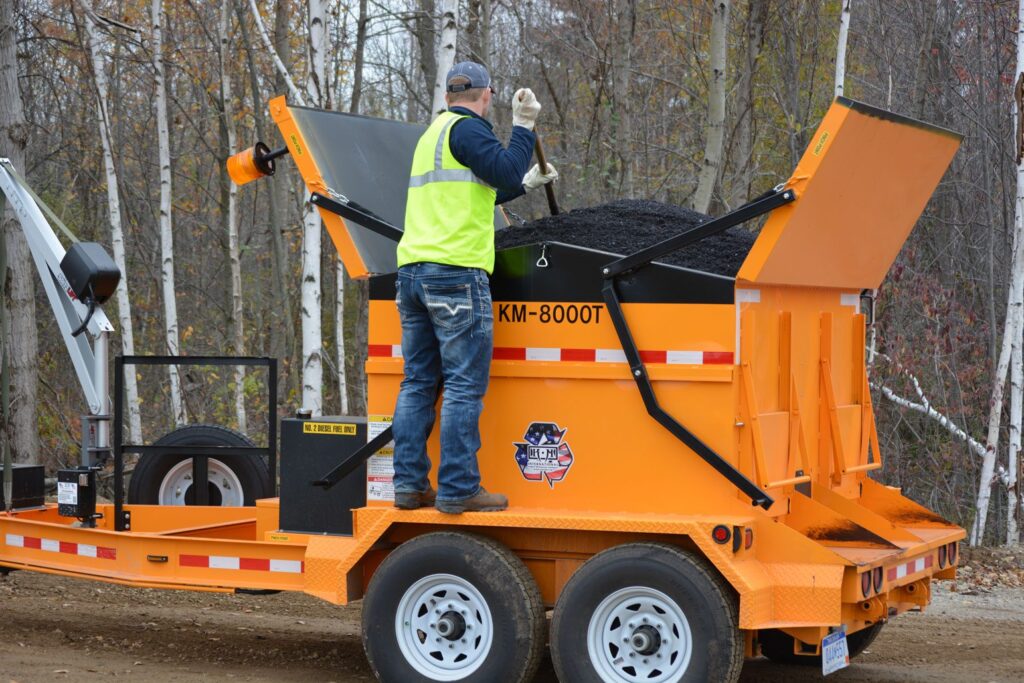

The KM 8000T 4 Ton asphalt hotbox trailer will maintain your hotmix asphalt or cold patch at optimal temperatures for up to 48 hours making it easy to transport material from jobsite to jobsite. The KM 8000T is also capable of reclaiming unused bulk stored or excess asphalt overnight so no more wasted asphalt because you got rained out or overestimated the material required. This unit is great for both municipal and contractor applications such as asphalt patching, infrared repair, and pothole repair.

FEATURES:

• Heat Retention: Triple Wall Construction with high efficiency insulation
• Temperature Control: Thermostatically controlled heating system for better fuel efficiency
• Cost Savings: Maintain HMA for up to 48 hours or Reclaim bulk stored virgin HMA
• Low Maintenance: Burner and key components mounted above frame and in steel enclosure
• Ease of Use: Front to back loading doors with cantilevered handles
• Diesel or Propane Fired
• 52˚ Dump feature (additional option)

SPECS:

• Dimension (L x W x H) – 18’ x 95.5” x 94” (Dimensions May Vary Based On Options)
• Weight – 4,325 Lbs.
• Capacity – 8,000 Lbs.
• Heating element – Propane: 58,000 BTU or Diesel: 105,000 BTU
• Filling Door – Dual insulated filling door, Dual cantilever handle
• Shovel Door – Dual insulated shovel door
• Insulation – 2”-3” of high efficiency insulation
• Construction – All welded: 16G Skin, 12G asphalt compartment
• Trailer Capacity – 14,000 Lbs. GVWR
• Axle – Dual 7,000 Lb. , standard electric brakes
• Tire and Wheels – 3,520 LR E (each)
• Warranty – 2-year warranty on parts and workmanship

*5-year warranty of trailer frame structure

*Specifications subject to change without notice

OUR EQUIPMENT:

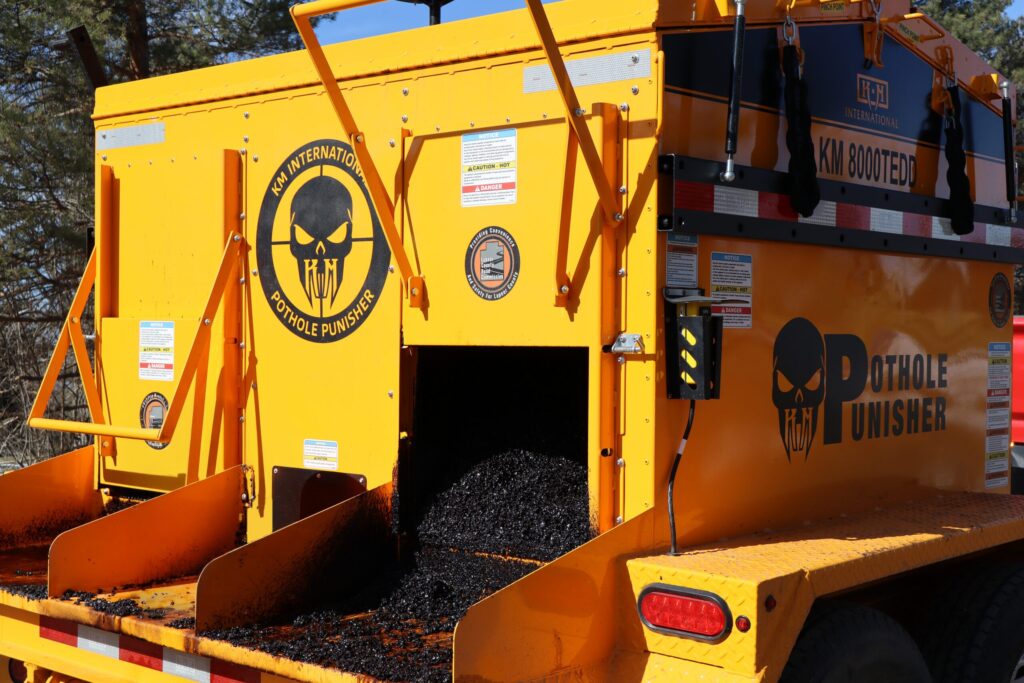

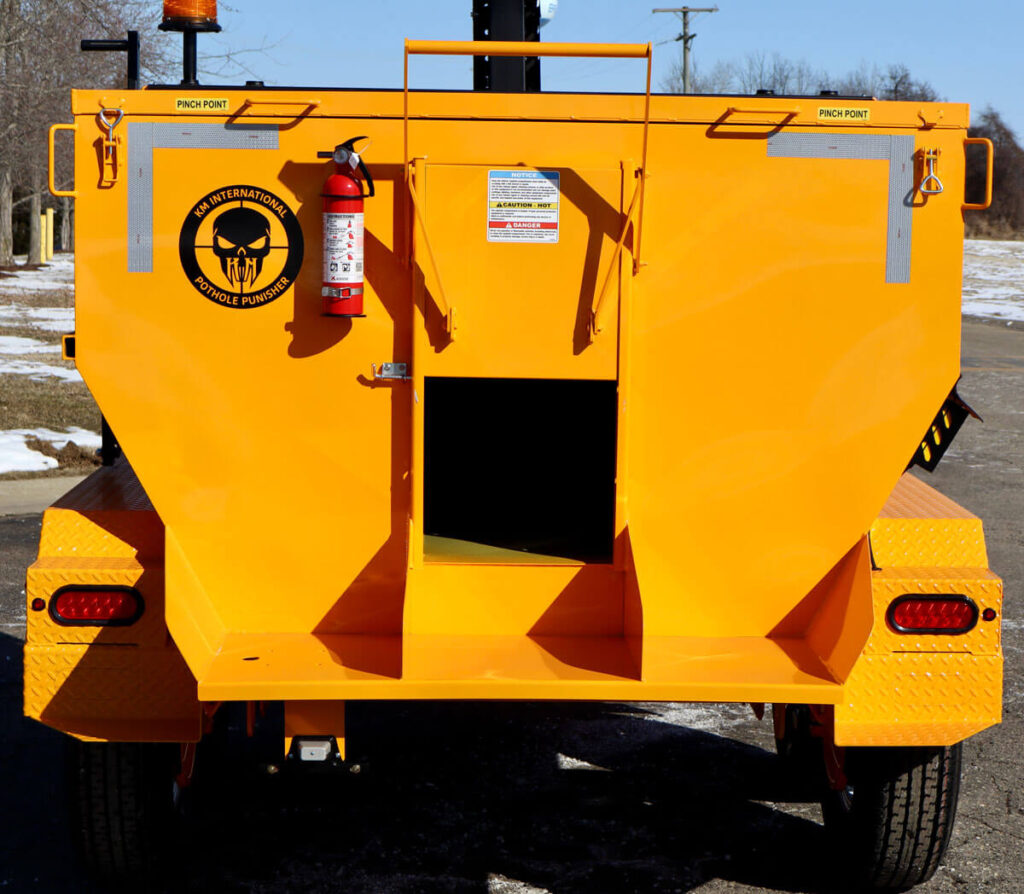

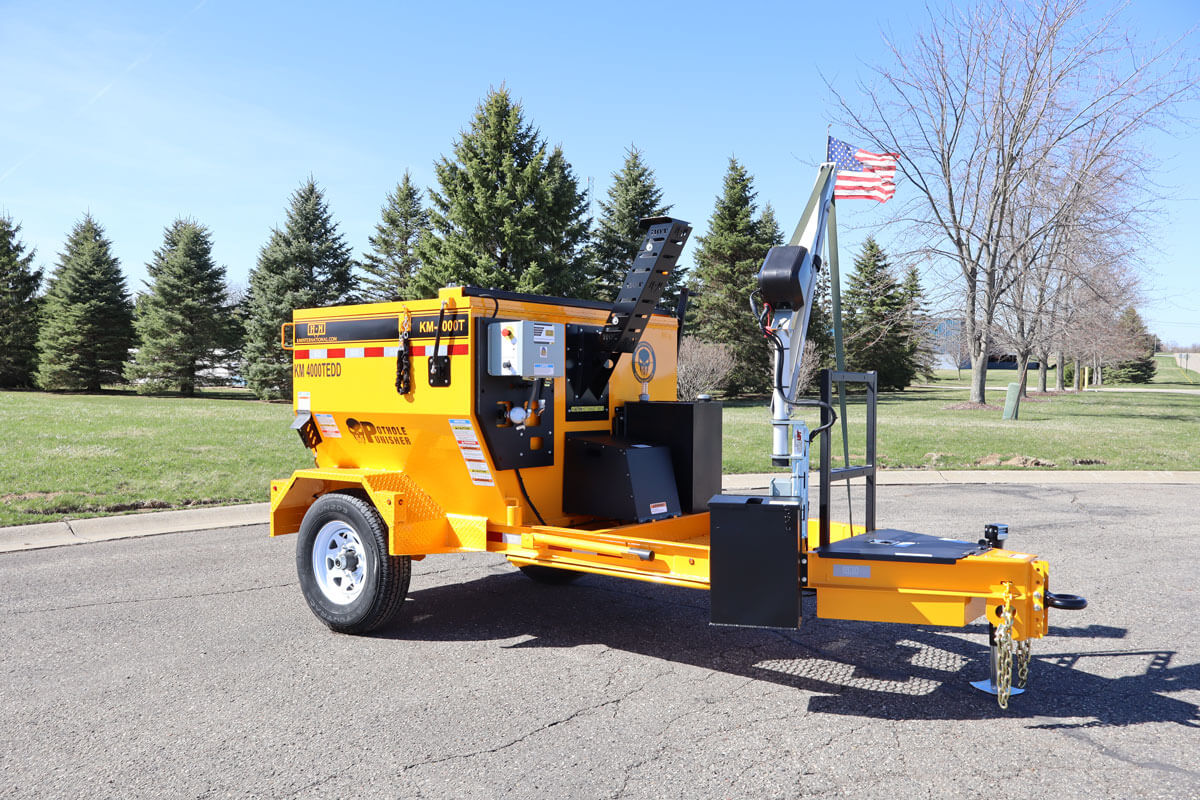

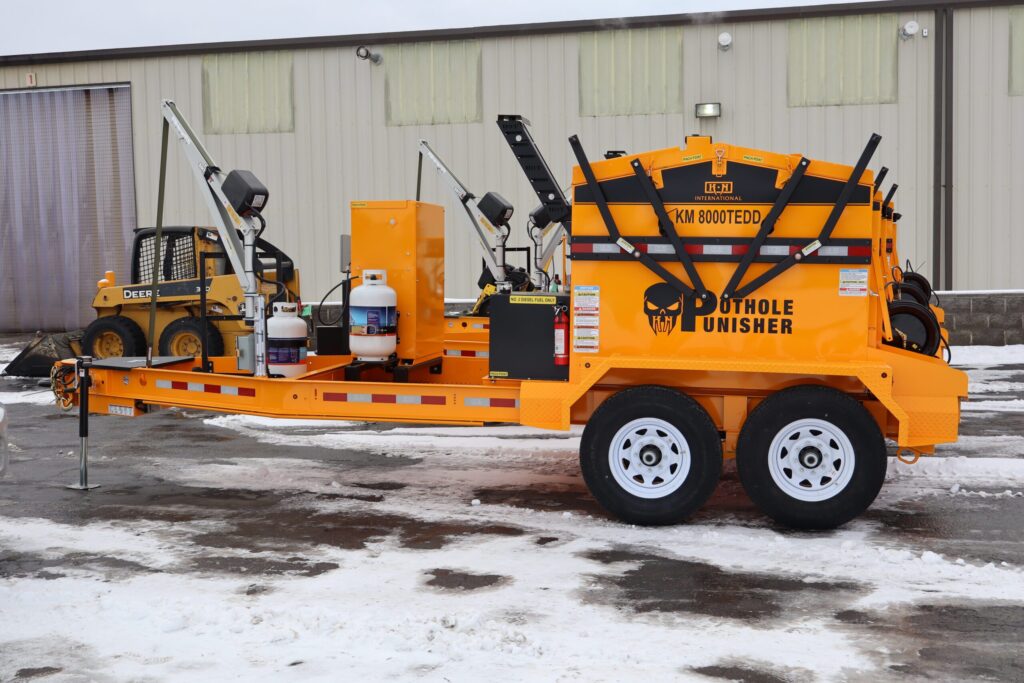

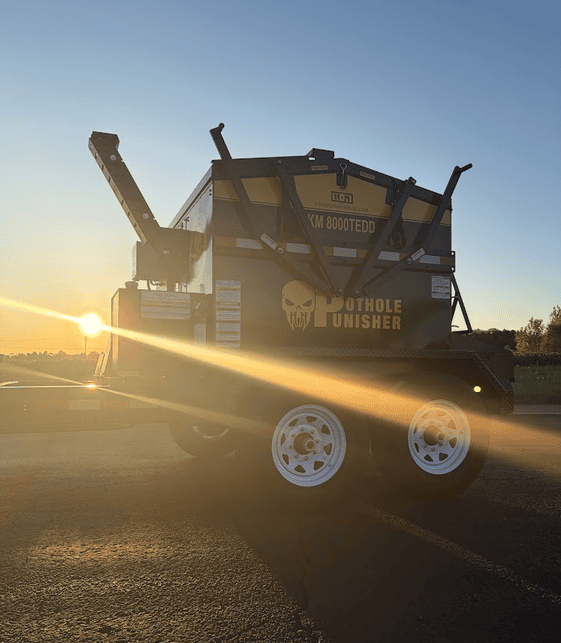

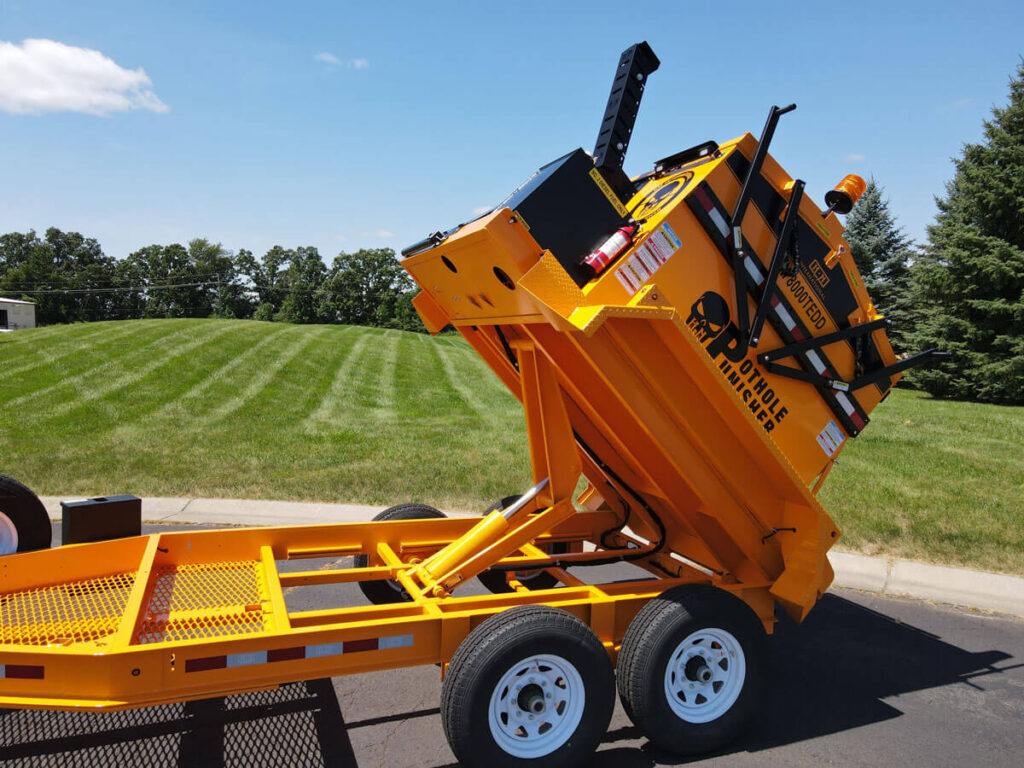

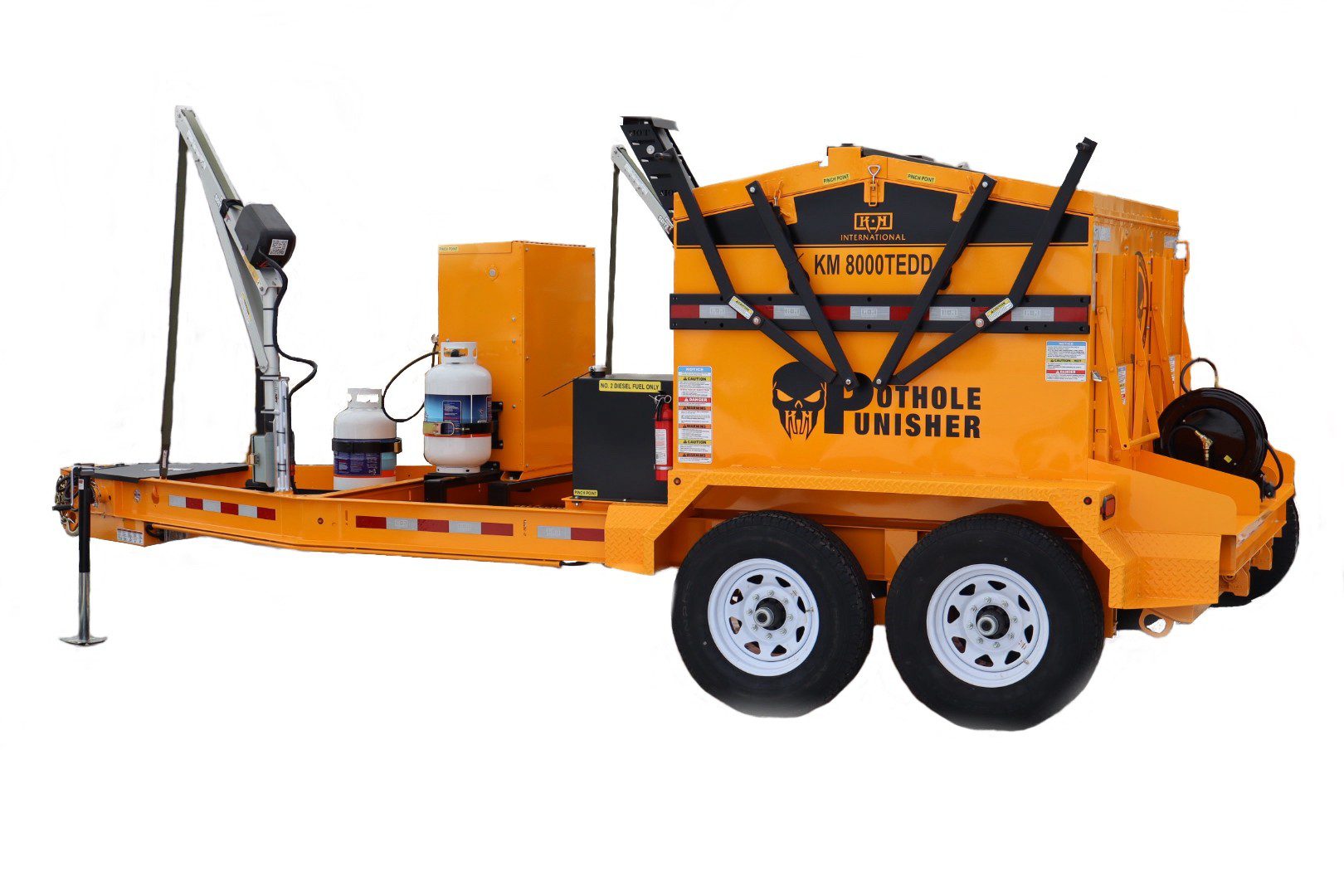

Check out the special edition Pothole Punisher 4 Ton Asphalt Hotbox Trailer brought to you exclusively by KM International! The Pothole Punisher is the same base model as KM’s 4 Ton Asphalt Hotbox but includes a desert sand paint scheme and Pothole Punisher branding. This unit is sure to make you stand out from your competition and turn heads driving to the job site

FEATURES:

• Heat Retention: Triple Wall Construction with high efficiency insulation
• Temperature Control: Thermostatically controlled heating system for better fuel efficiency
• Cost Savings: Maintain HMA for up to 48 hours or Reclaim bulk stored virgin HMA
• Low Maintenance: Burner and key components mounted above frame and in steel enclosure
• Ease of Use: Front to back loading doors with cantilevered handles
• Diesel or Propane Fired
• 52˚ Dump feature (additional option)

SPECS:

• Dimension (L x W x H) – 18’ x 95.5” x 94” (Dimensions May Vary Based On Options)
• Weight – 4,325 Lbs.
• Capacity – 8,000 Lbs.
• Heating element – Propane: 58,000 BTU or Diesel: 105,000 BTU
• Filling Door – Dual insulated filling door, Dual cantilever handle
• Shovel Door – Dual insulated shovel door
  Insulation – 2”-3” of high efficiency insulation
• Construction – All welded: 16G Skin, 12G asphalt compartment
• Trailer Capacity – 14,000 Lbs. GVWR
  Axle – Dual 7,000 Lb. , standard electric brakes
• Tire and Wheels – 3,520 LR E (each)
  Warranty – 2-year warranty on parts and workmanship

*5-year warranty of trailer frame structure

*Specifications are subject to change without notice

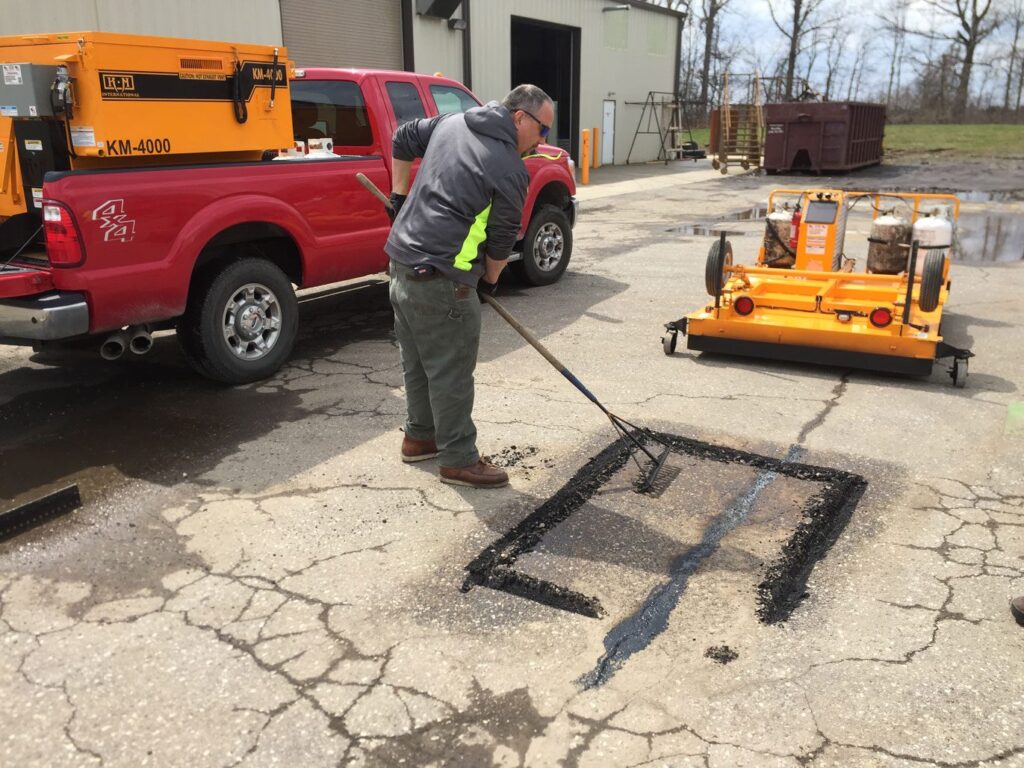

4 zones covering 48 sqft with two 2’ x 4’ zones and two 4’ x 4’ zones.

OUR EQUIPMENT:

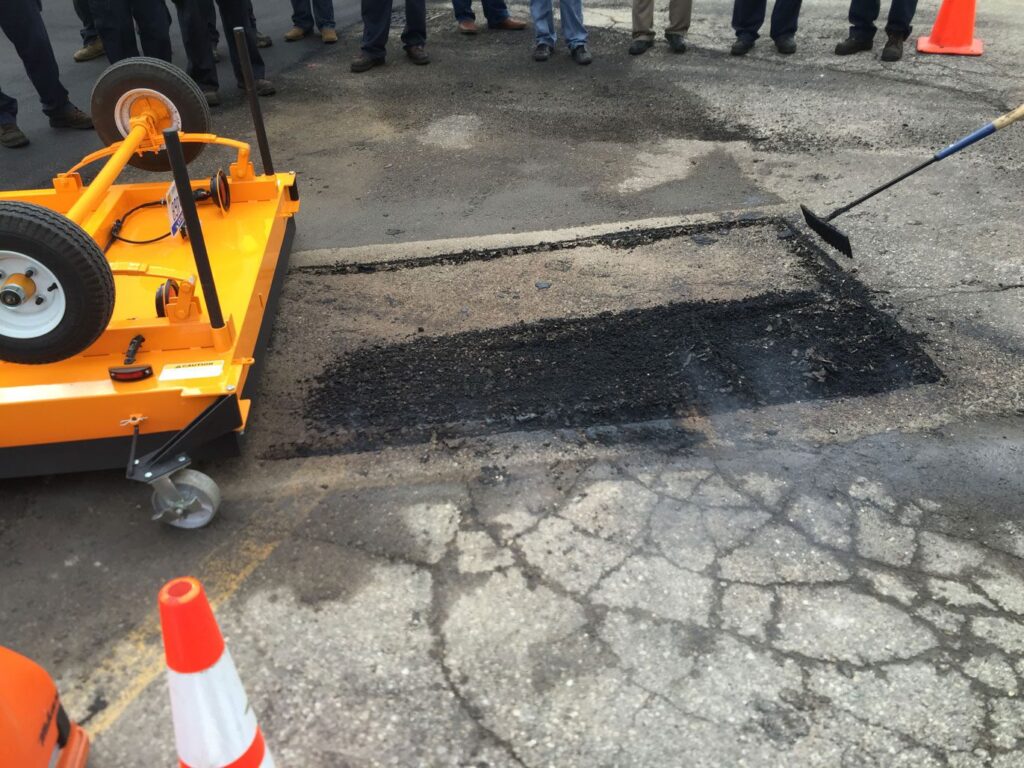

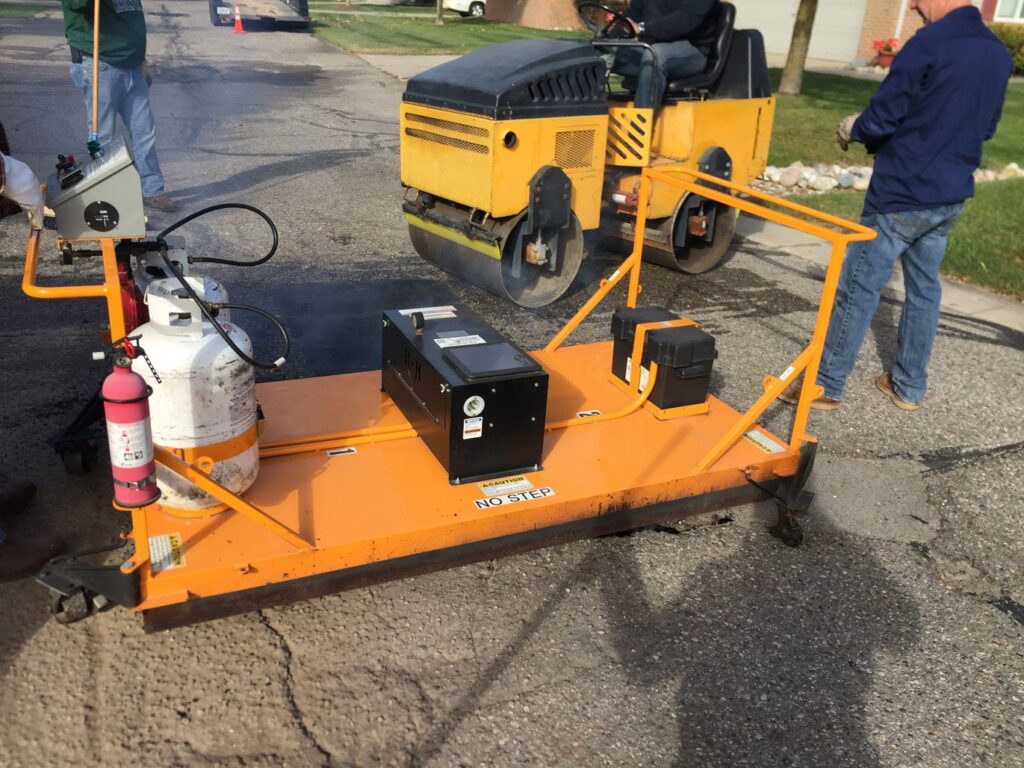

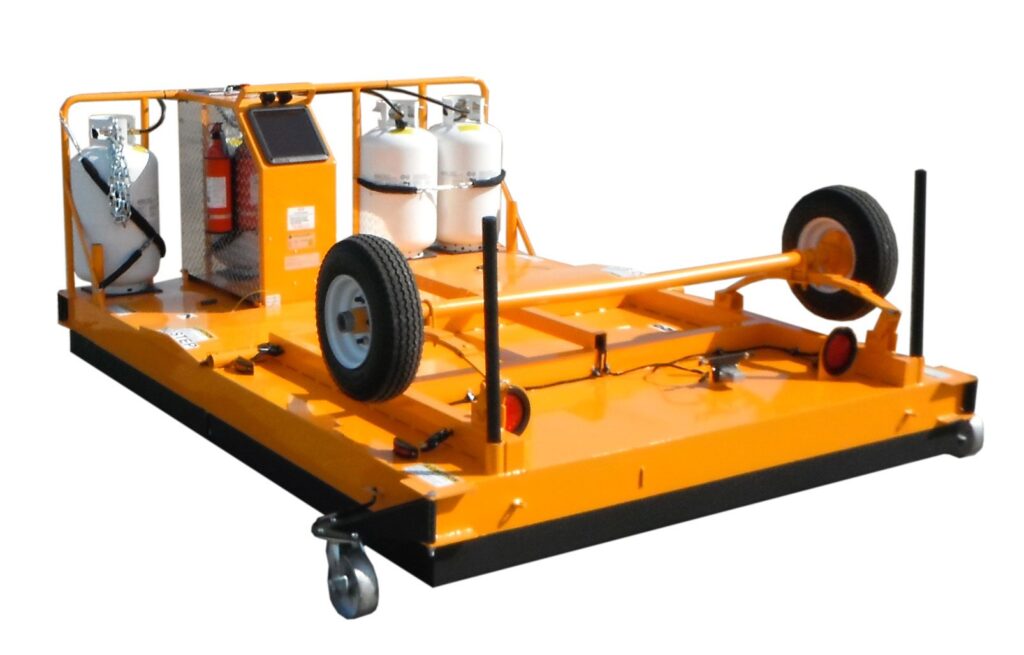

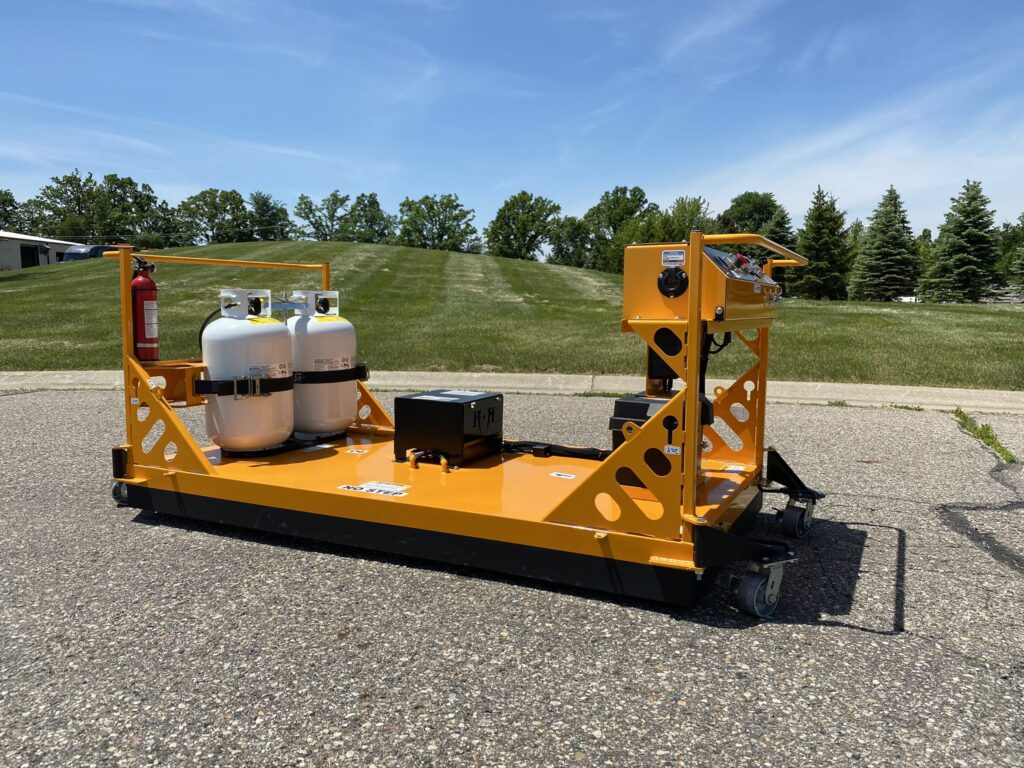

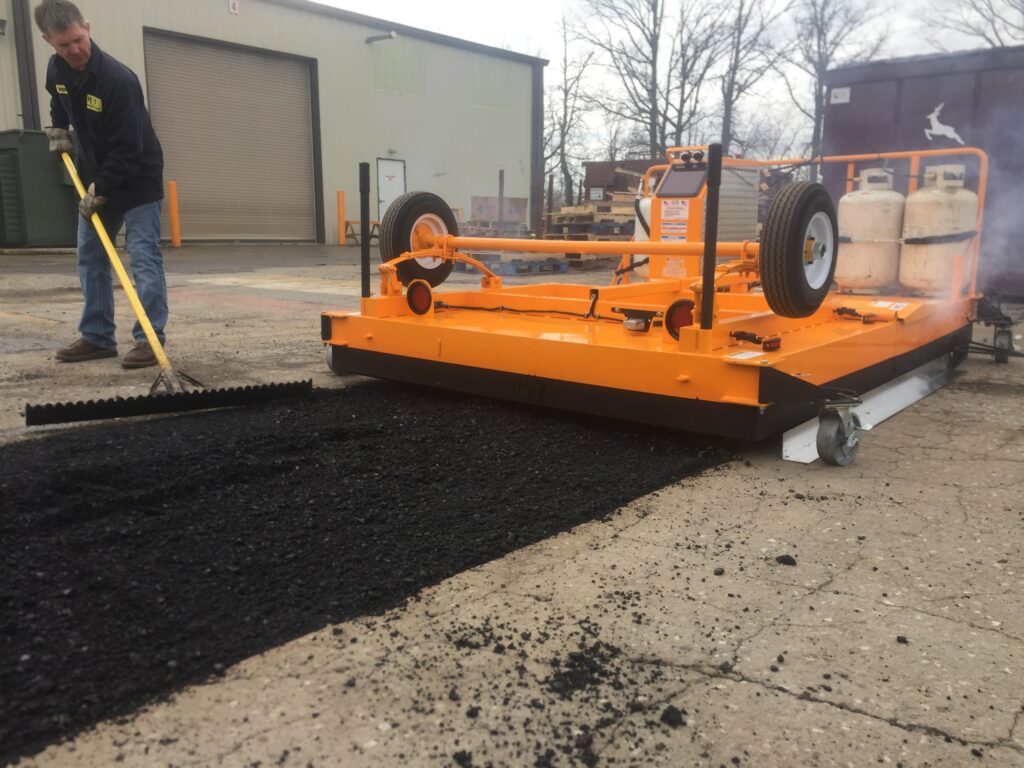

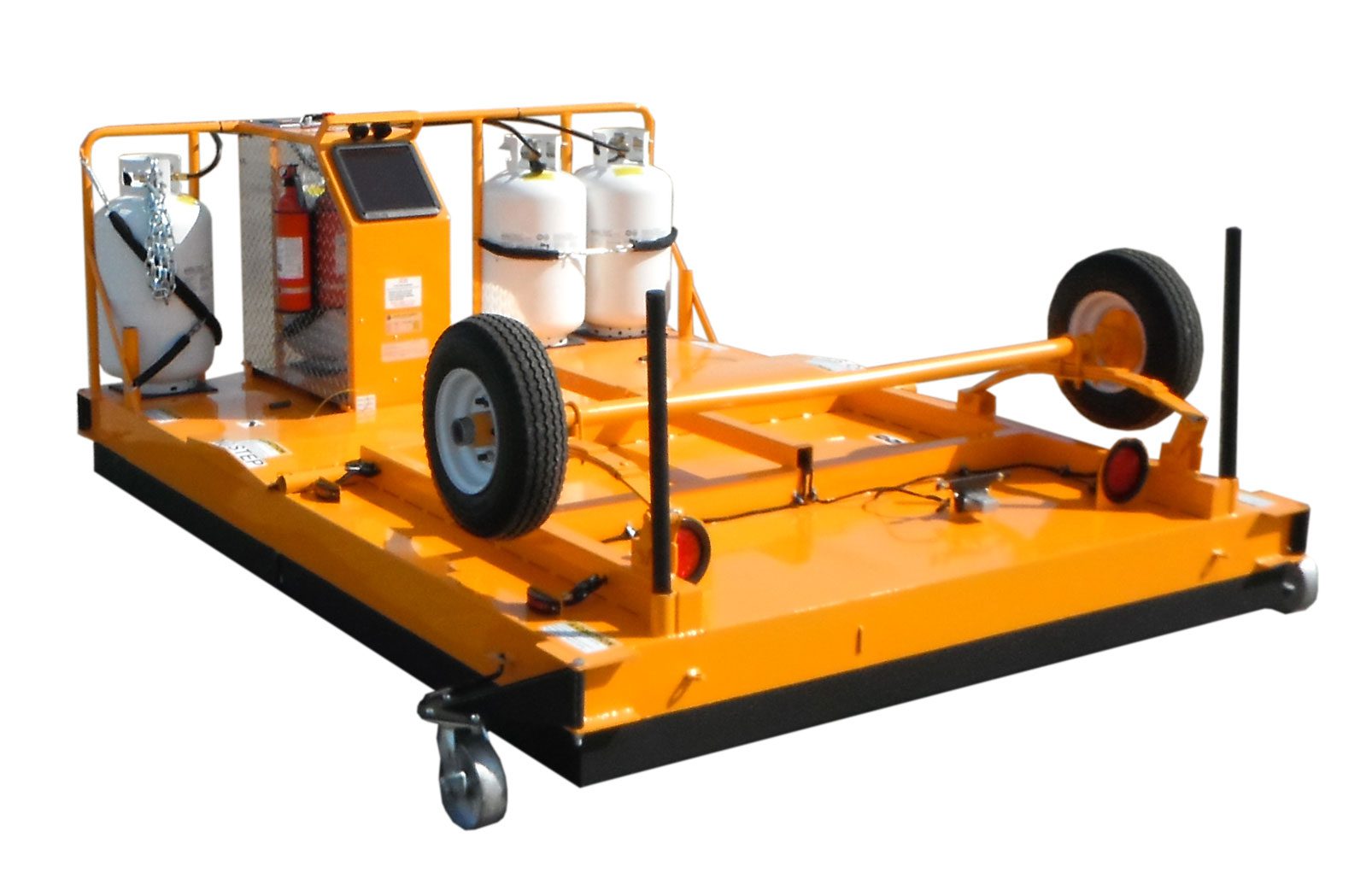

With 48 square feet of infrared heating area, the KM 4-48 is KM International’s largest infrared asphalt recycler. The KM 4-48 is recommended for templating and thermoplastic applications.

FEATURES:

• Easy Transportation: Fold into single axel self-trailering unit
• Maneuverable: Mounted on 4 independent swivel casters
• Efficient: Heat cycling technology
• Safety: Automatic pilot ignition
• Versatile: 4 independently controlled heating zones

SPECS:

• Overall Dimensions (L x W x H) – 116″ x 90″ x42″
• Transit Dimensions (L x W x H) – 98″ x 90″ x 67″
• Overall Weight – 860 Lbs.
• Heating Element – 1” Ceramic Refractory Blanket
• Heating Zones 4 Total: (2) 2’ x 4’ and (2) 4’ x 4’
• Battery – 12V Deep Cycle Marine Gel
• BTU Output – 840,000 BTU
• Tires – 4.80-8” 2 Ply

*Specifications are subject to change without notice

4 zones covering 40 sqft with two 2’ x 4’ zones and two 3’ x 4’ zones

OUR EQUIPMENT:

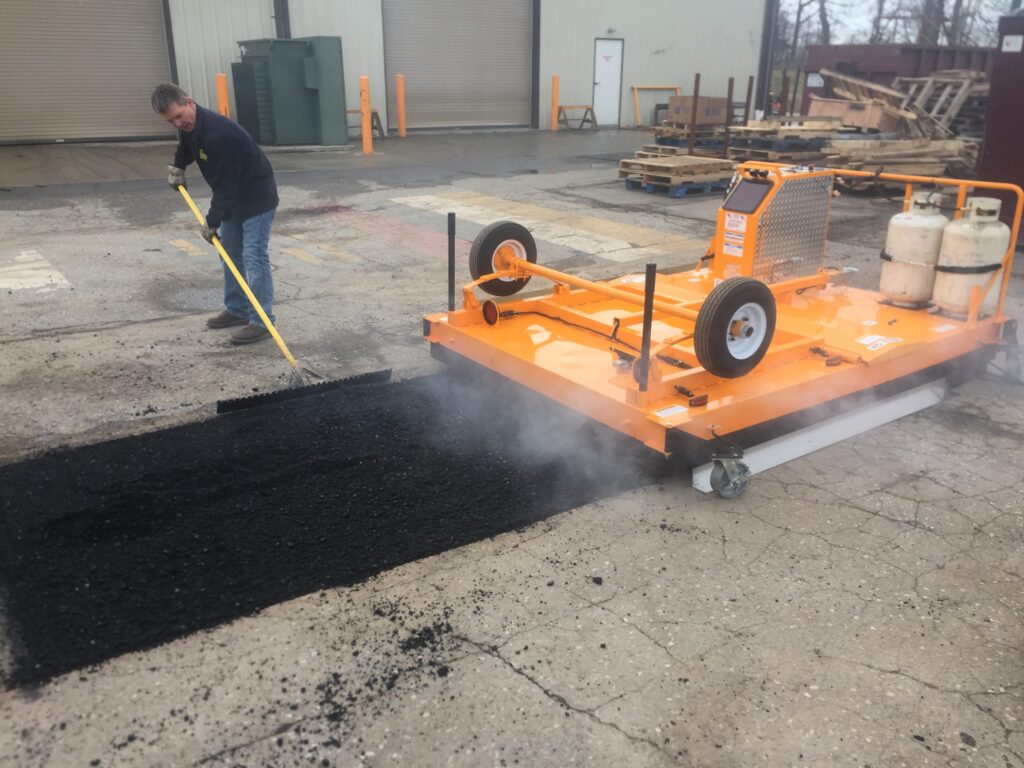

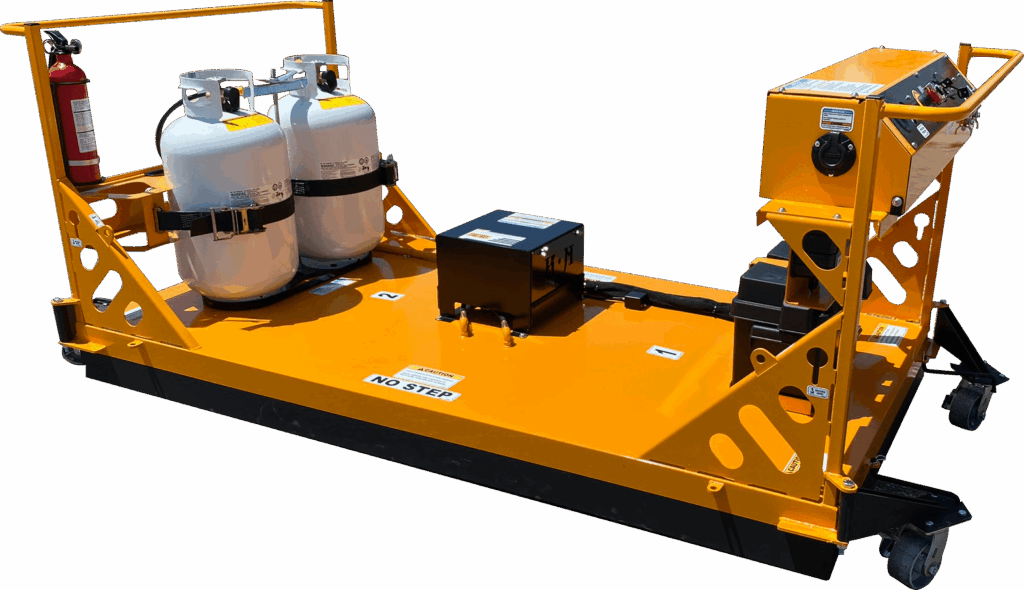

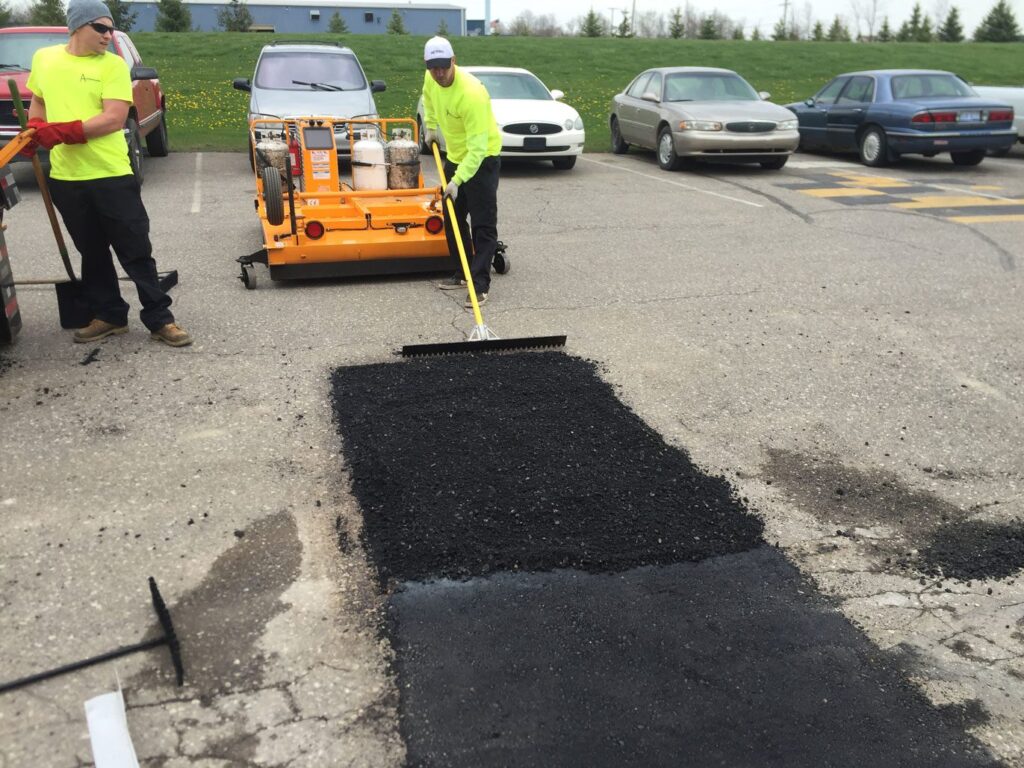

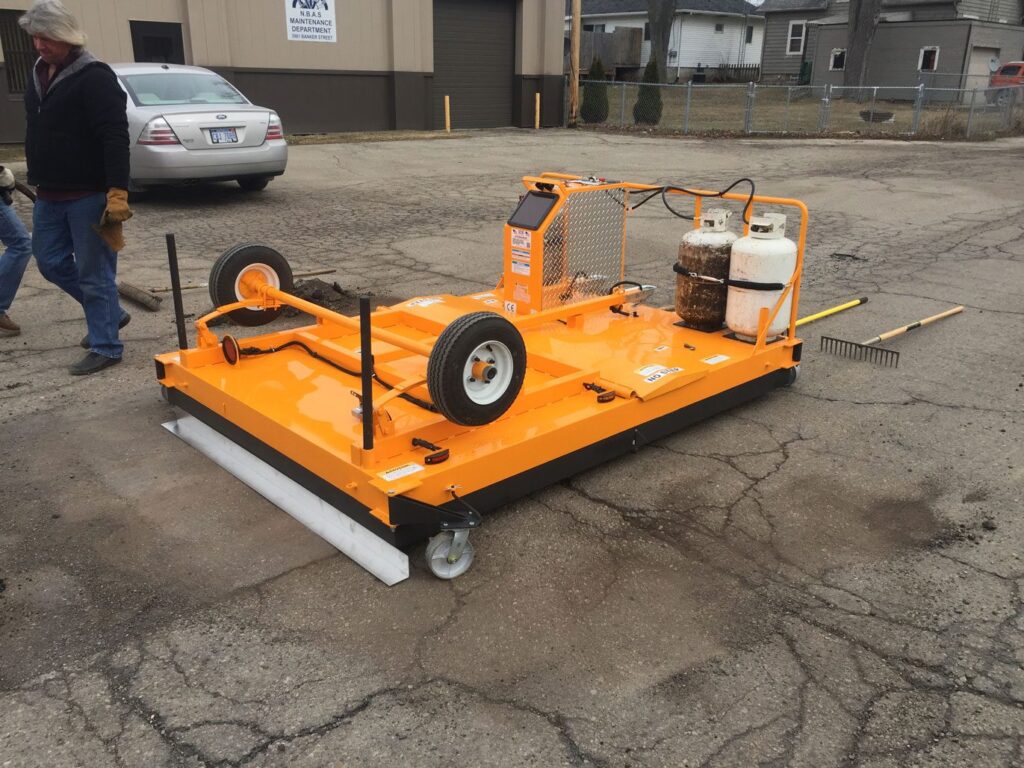

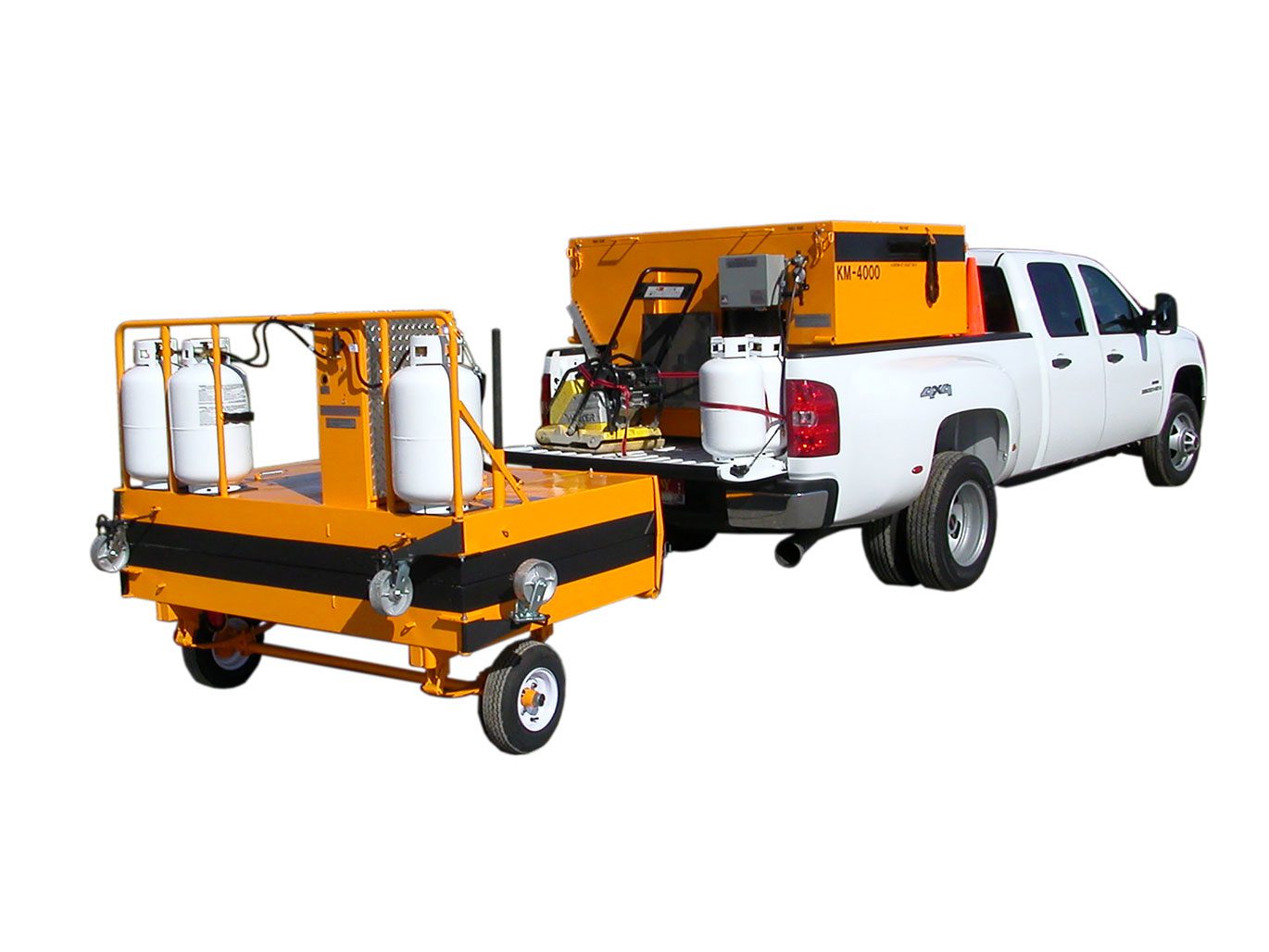

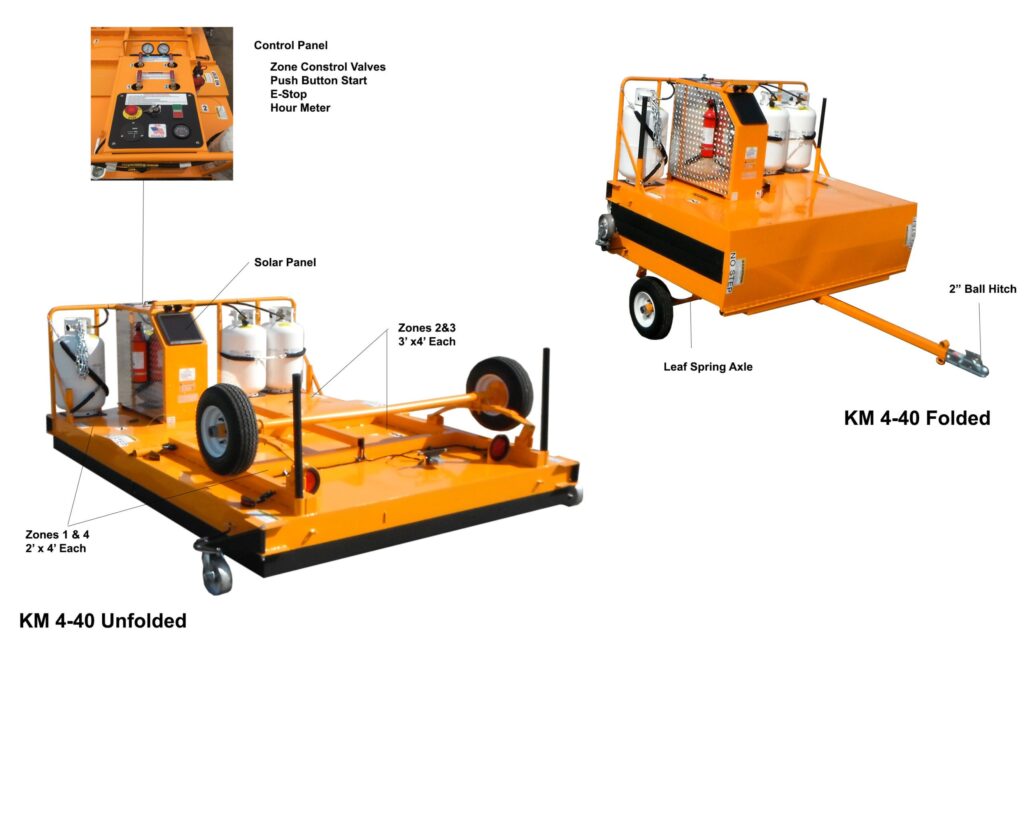

The KM 4-40 features 4 independent heating zones and a total heating area of 40 Sq. Ft. The expanded heating size combined with the versatility and ease of use make the KM 4-40 KM’s most popular infrared unit among asphalt contractors. The KM 4-40 is a self-trailering unit making it extremely easy to transport from jobsite to jobsite. Although larger, the KM 4-40 is mounted on 4 casters making it just as maneuverable as smaller infrared units while still giving you the ability to seamlessly repair any asphalt defects you come up against.

FEATURES:

• Easy Transportation: Folds into single axel self-trailering unit
• Maneuverable: Mounted on 4 independent swivel casters
• Safety: Automatic pilot ignition
• Efficient: Heat cycling technology
• Versatile: 4 independently controlled heating zones

SPECS:

• Overall Dimensions (L x W x H) – 116″ x 78″x 42″
• Transit Dimensions (L x W x H) – 98″ x 78″ x 67″
• Overall Weight – 810 Lbs.
• Heating Element – 1” Ceramic Refractory Blanket
• Heating Zones 4 Total: (2) 2’ x 4’ and (2) 3’ x 4’
• Battery – 12V Deep Cycle Marine Gel
• BTU Output – 700,000 BTU
• Tires – 4.80-8” 2 Ply

*Specifications are subject to change without notice

OUR EQUIPMENT:

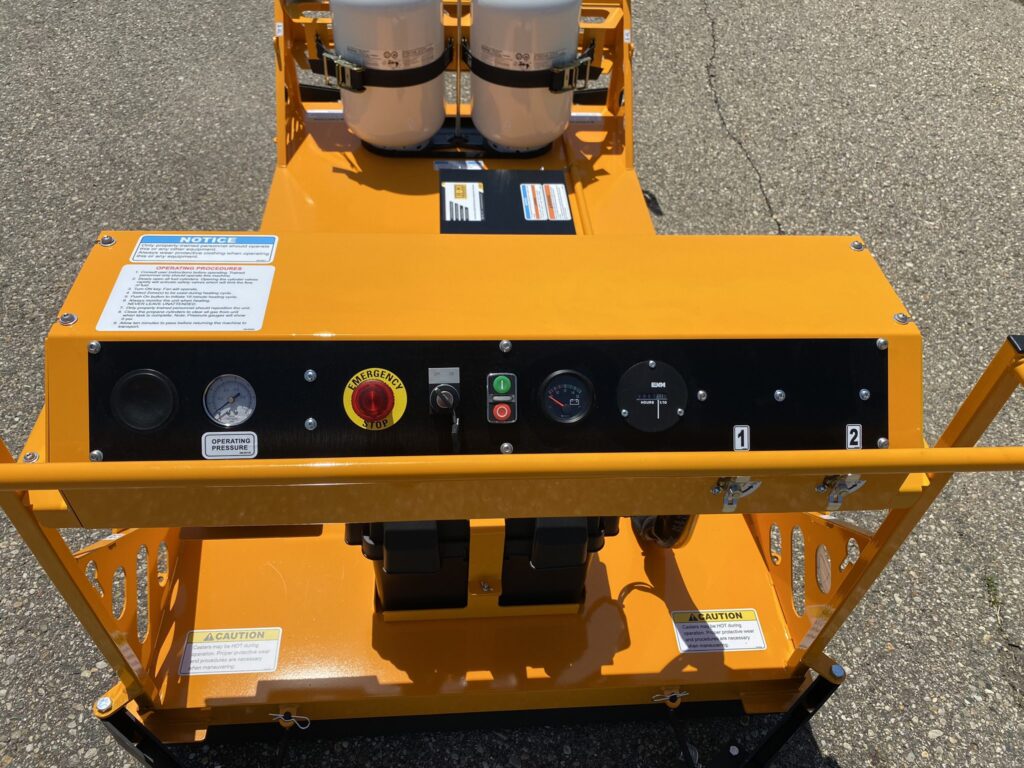

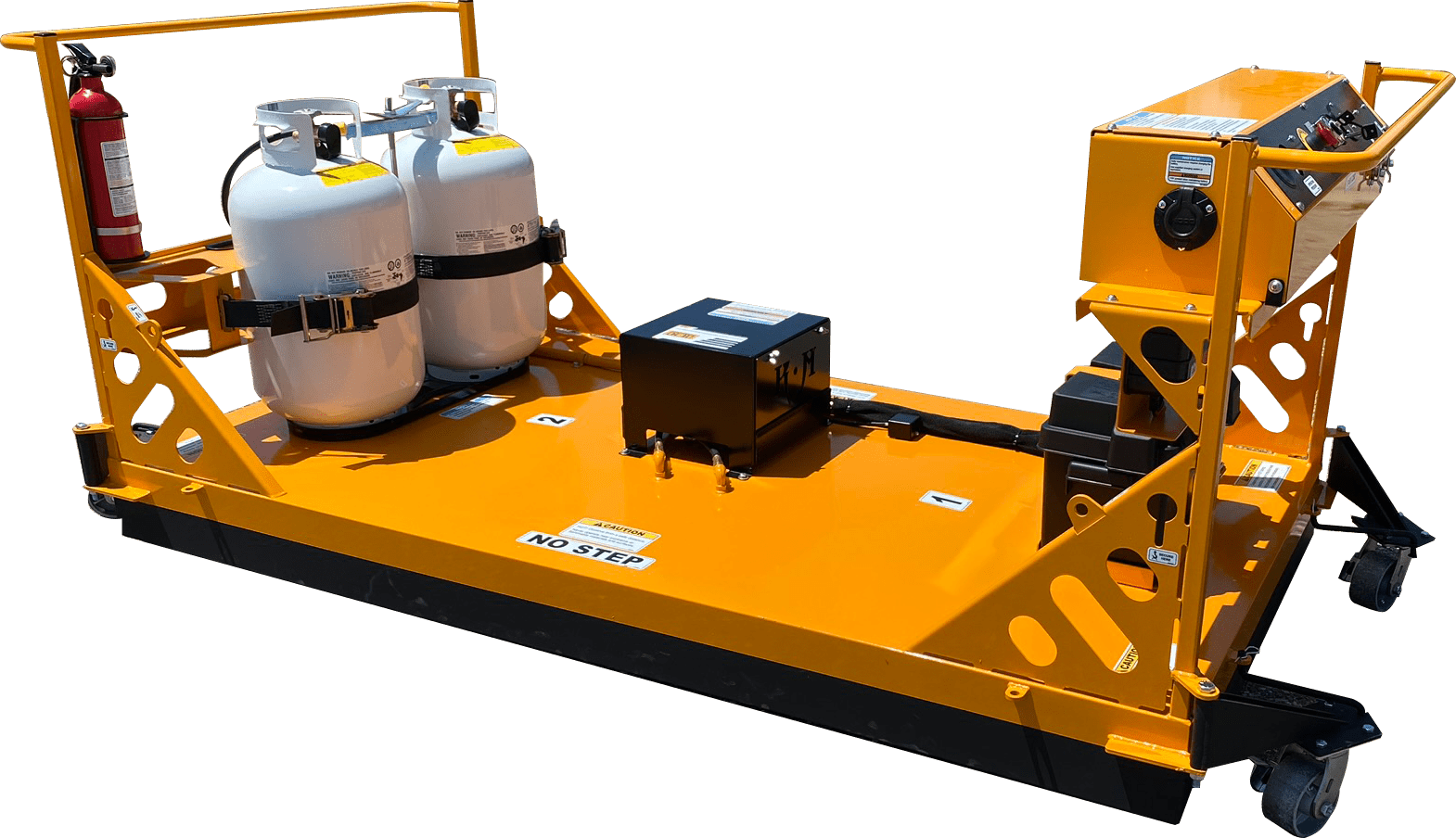

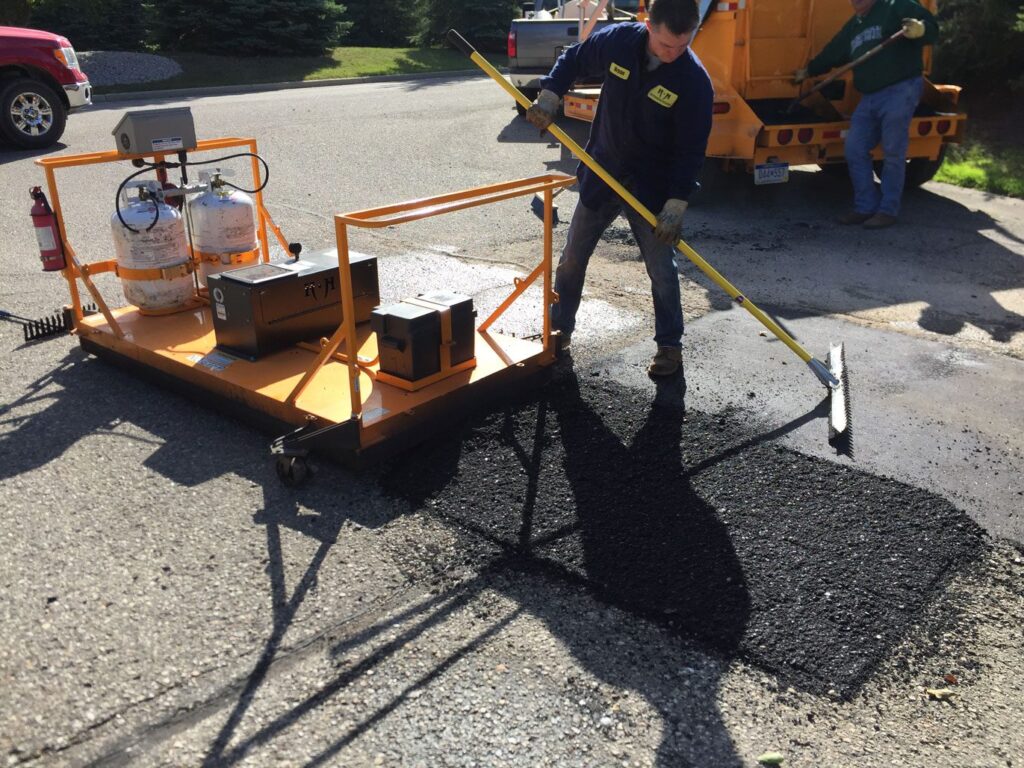

The KM 2-18X is the pavers logical choice for a lightweight infrared asphalt recycler for cold seams and features 23 square feet of heating area.

FEATURES:

• Versatile: 2 independently controlled heating zones
• Maneuverable: Mounted on 4 independent swivel casters
• Safety: Automatic pilot ignition
• Efficient: Heat cycling technology

SPECS:

• Overall Dimensions (L x W x H) – 7′ x 59.5″ x 37″
• Overall Weight – 455Lbs.
• Heating Element – 1” Ceramic Refractory Blanket
• Heating Zones – (2) 3’6” x 3’6”
• Battery – 12V Deep Cycle Marine Gel
• BTU Output – 300,000 BTU

*Specifications are subject to change without notice

OUR EQUIPMENT:

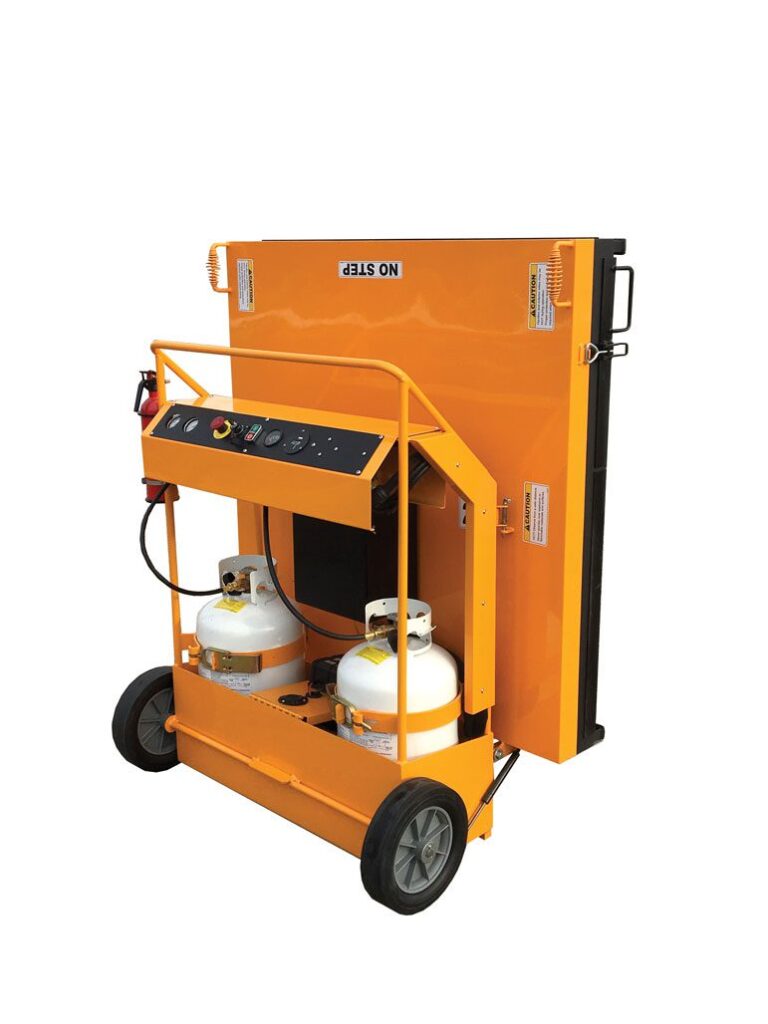

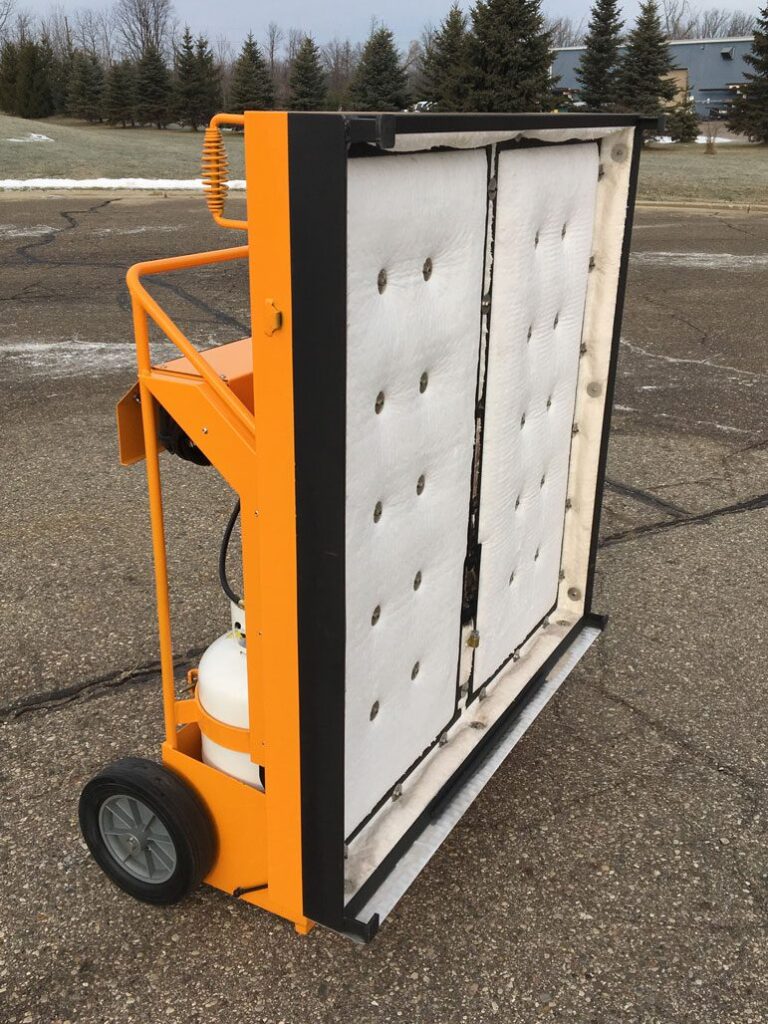

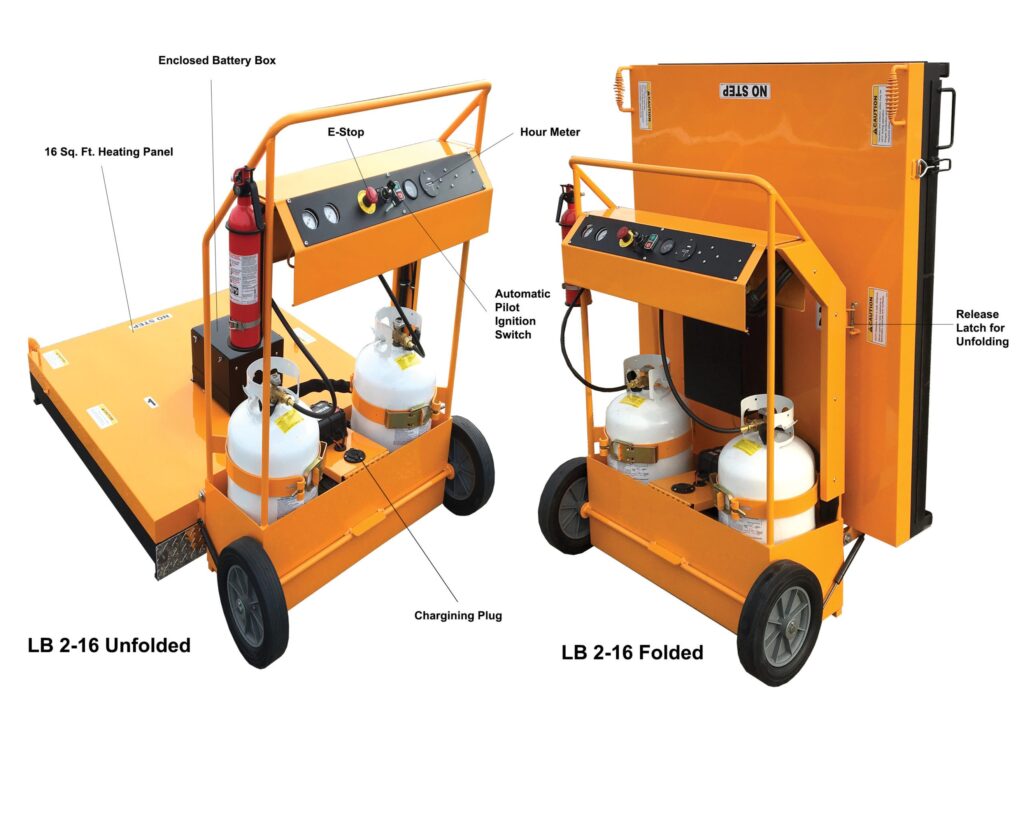

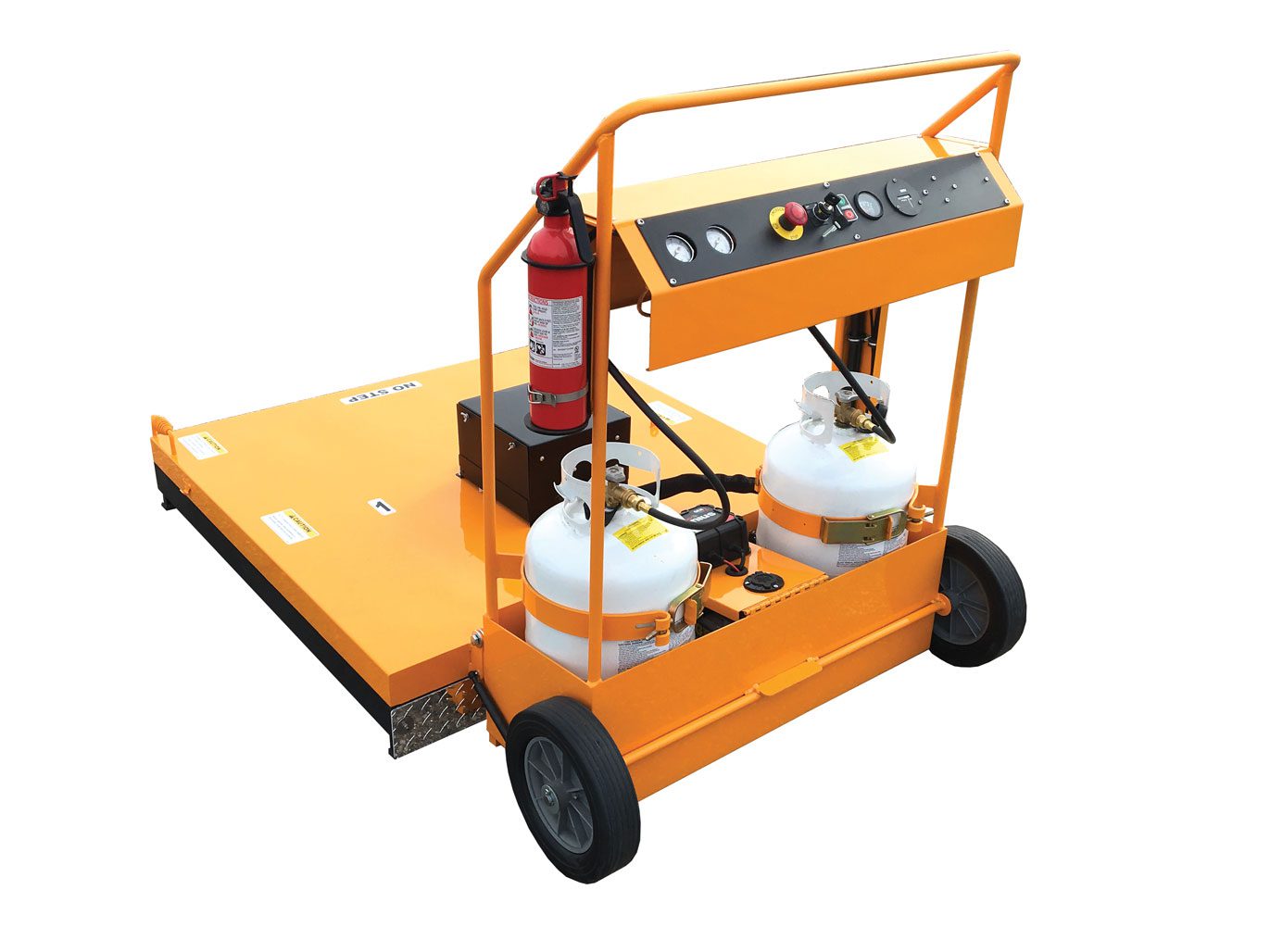

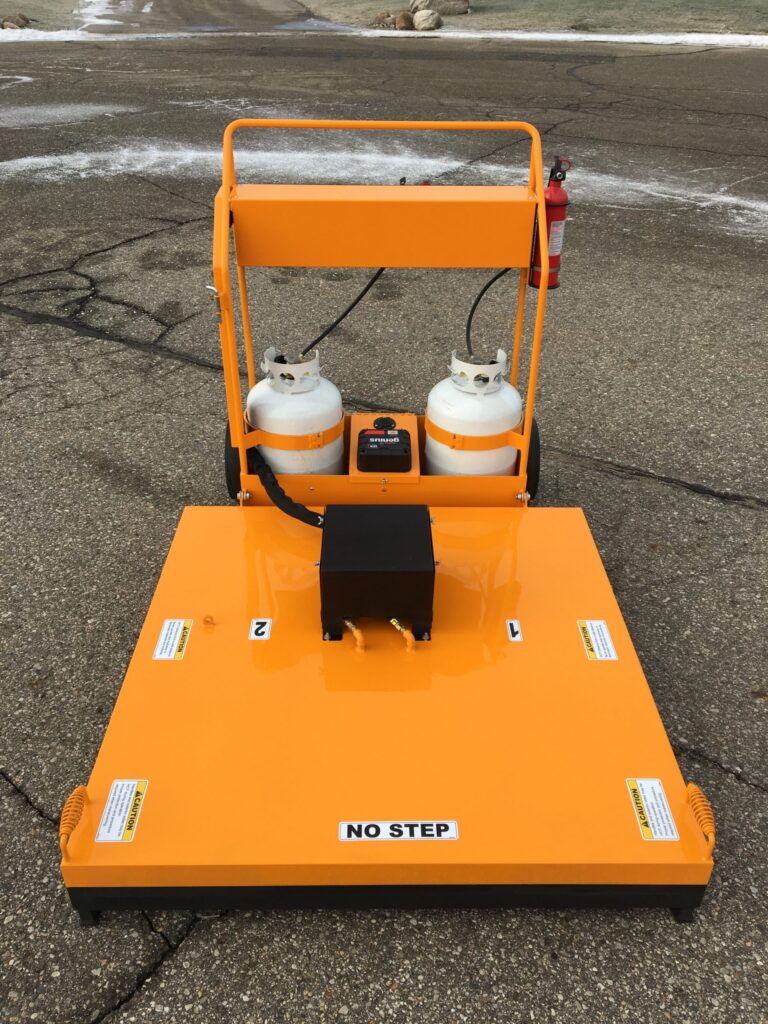

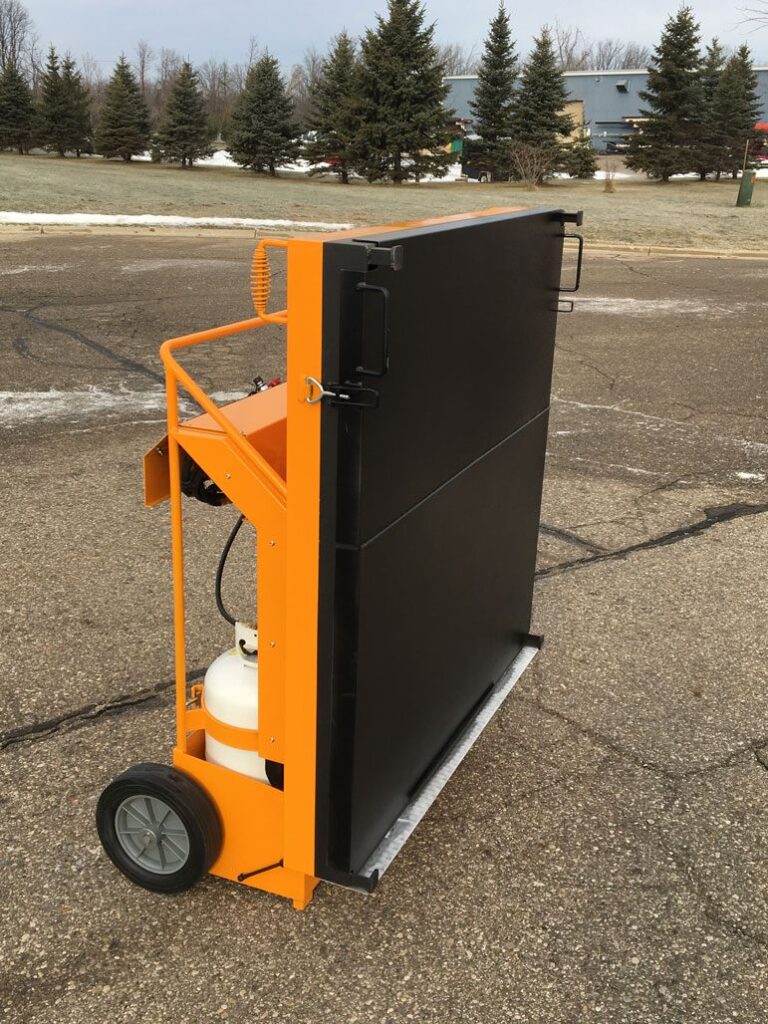

The LB 2-16 is a compact infrared unit equipped with a total of 16 sq. ft of infrared heating area.

FEATURES:

• Safety: Automatic Pilot Ignition
• Efficient: Heat Cycling technology
• Versatile: 2 Independently controlled zones

*Unique folding design for easy transportation and use.

SPECS:

• Overall Dimensions (L x W x H) – 72” x 523” x 52”
• Transit Dimensions (L x W x H) – 30” x 53” x 60”
• Overall Weight – 420Lbs. (Infrared Panel is 98 Lbs.)
• Heating Element – 1” Ceramic Refractory Blanket
• Heating Zones – (2) 2’ x 4’ Heating Zones (16 Total Sq. Ft. of Heating Area)
• Battery – 12V Deep Cycle Marine Gel
• BTU Output – 280,000 BTU

*Specifications are subject to change without notice

OUR EQUIPMENT:

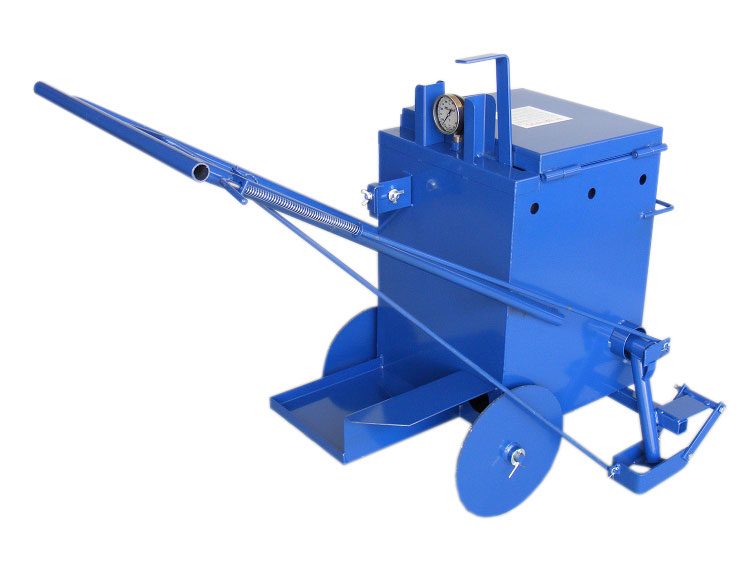

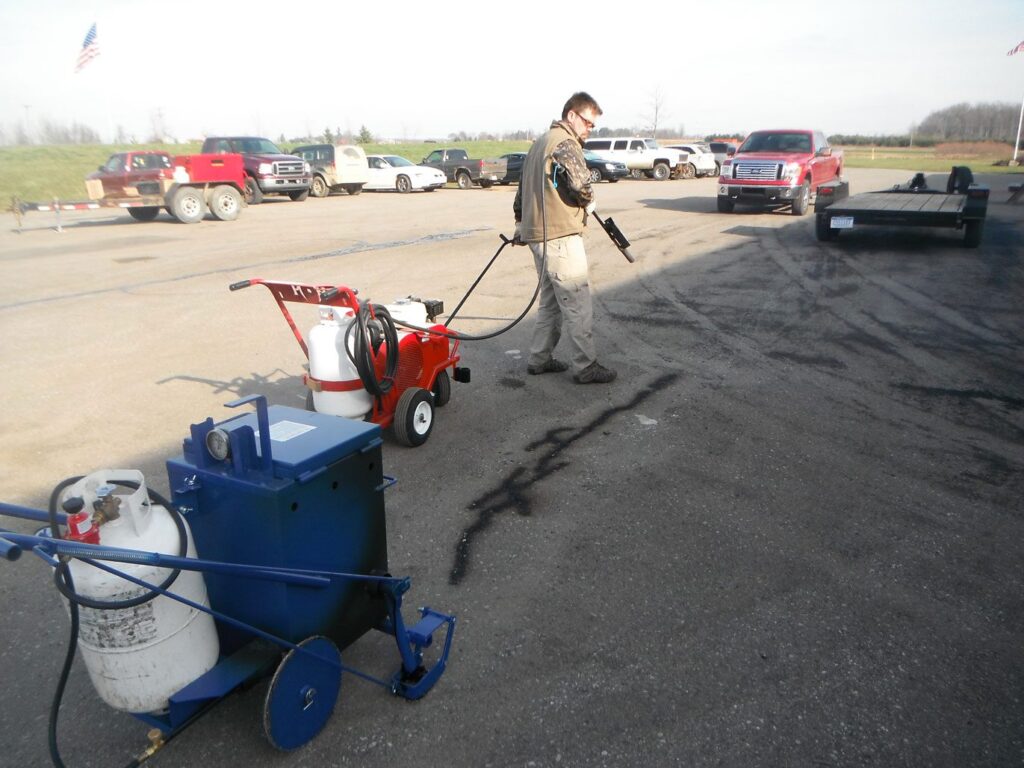

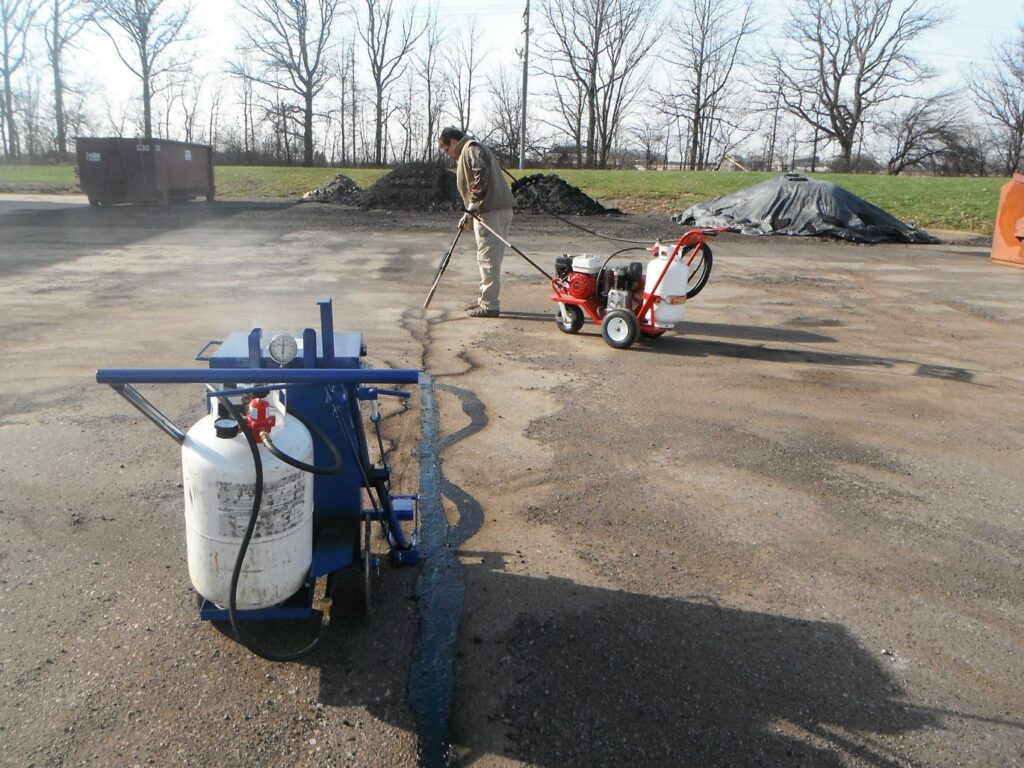

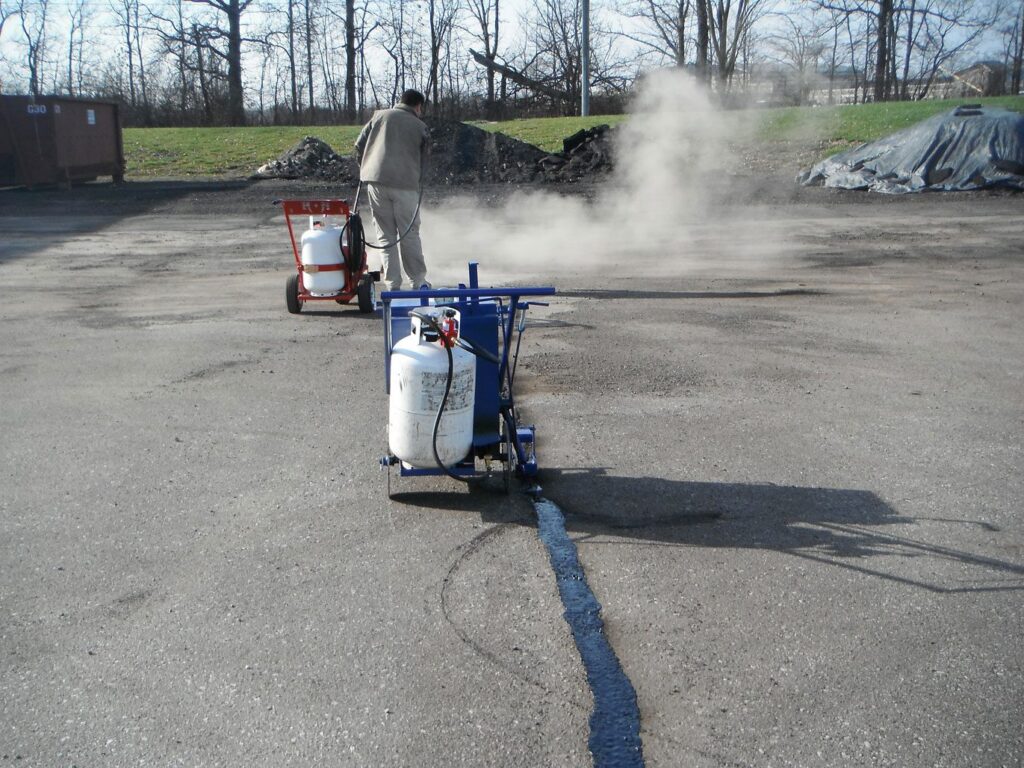

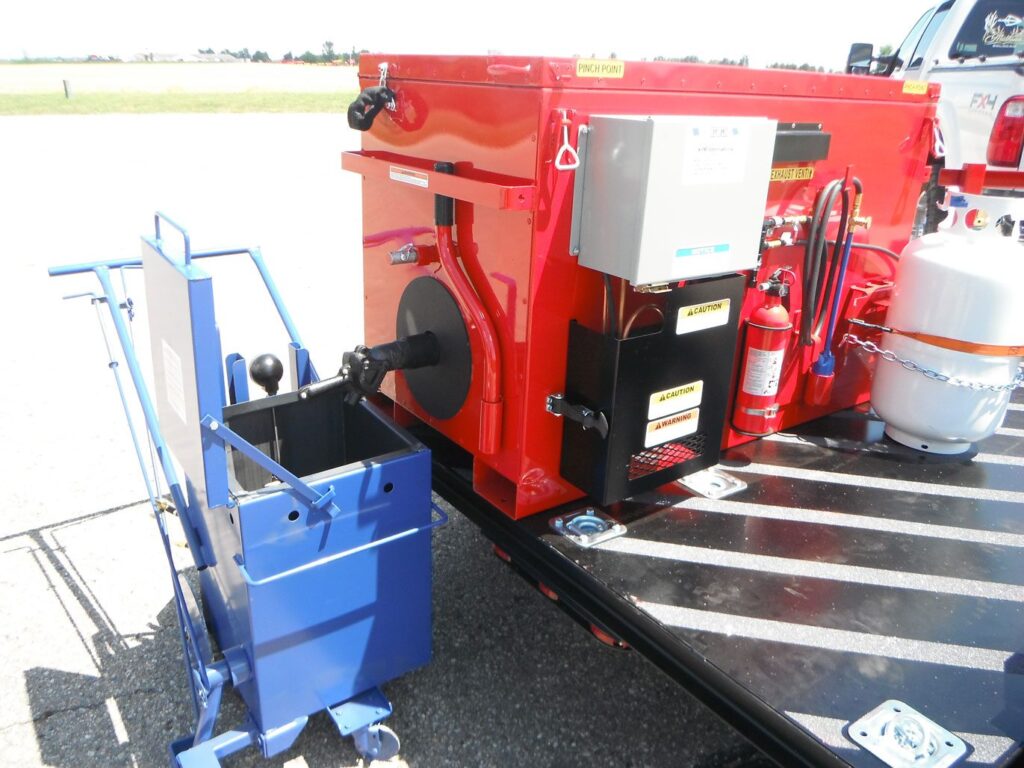

The MA 10 sets the standard in the rubber applicator industry. This 10-gallon applicator is designed to accommodate small to medium size crack fill jobs such as parking lots, driveways, or trail systems. The MA 10 comes standard with a hose regulator, temperature gauge, and propane bottle platform and is compatible with both hot and cold pour rubber.

FEATURES:

• All steel construction
• Spring loaded hand control release valve
• Steel screed for scarping off sealant with top plate

SPECS:

• Dimensions (L x W x H) – 47” x 27” x 36”
• Weight – 130Lbs.
• Capacity – 10 Gallons

*Specifications are subject to change without notice

OUR EQUIPMENT:

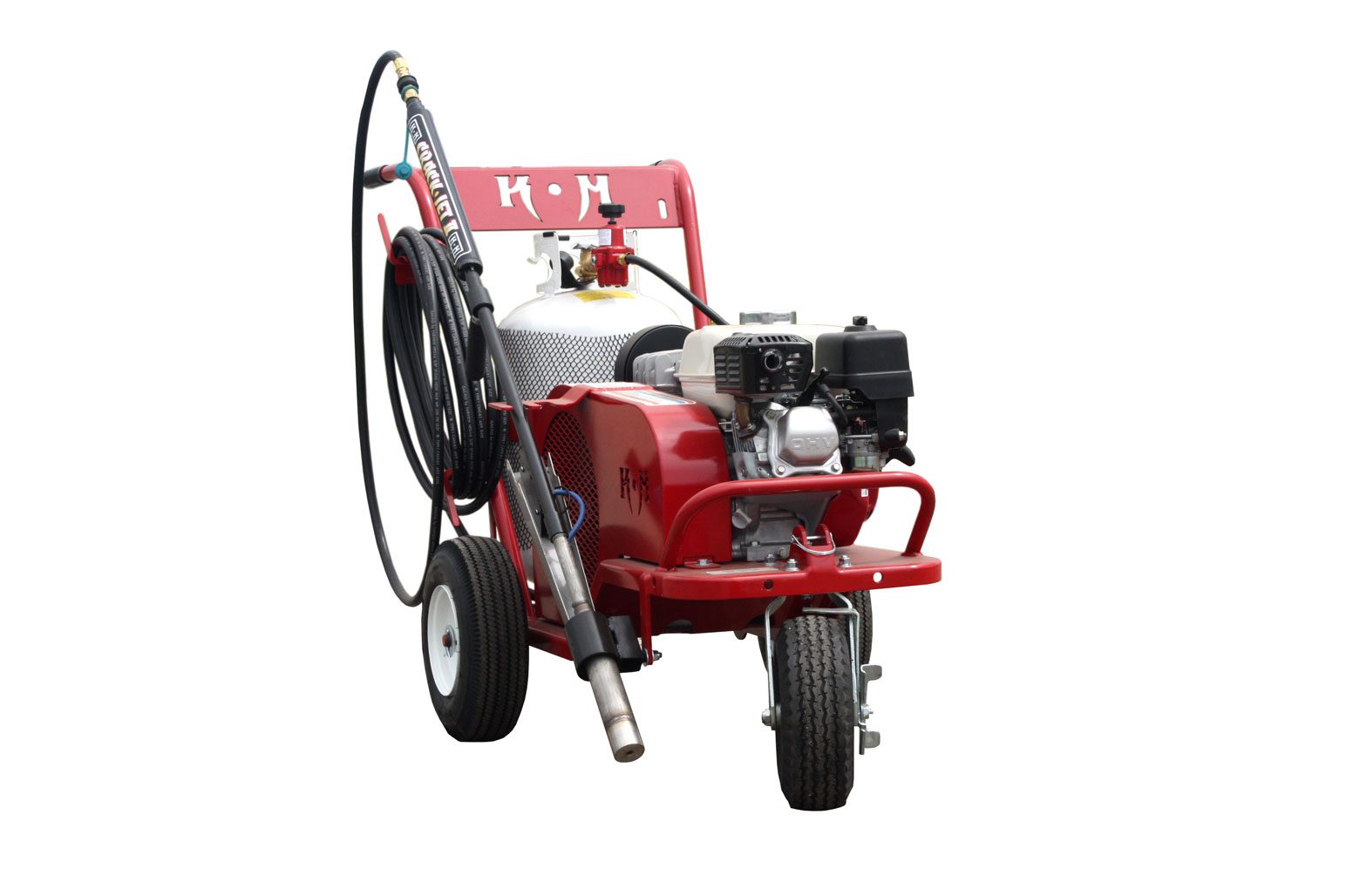

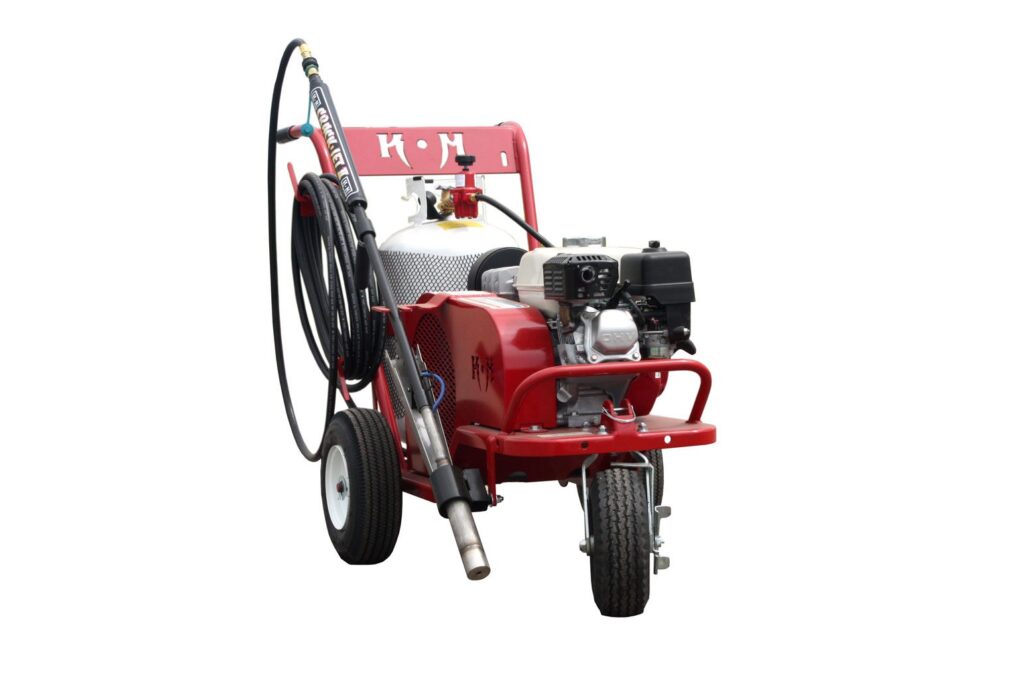

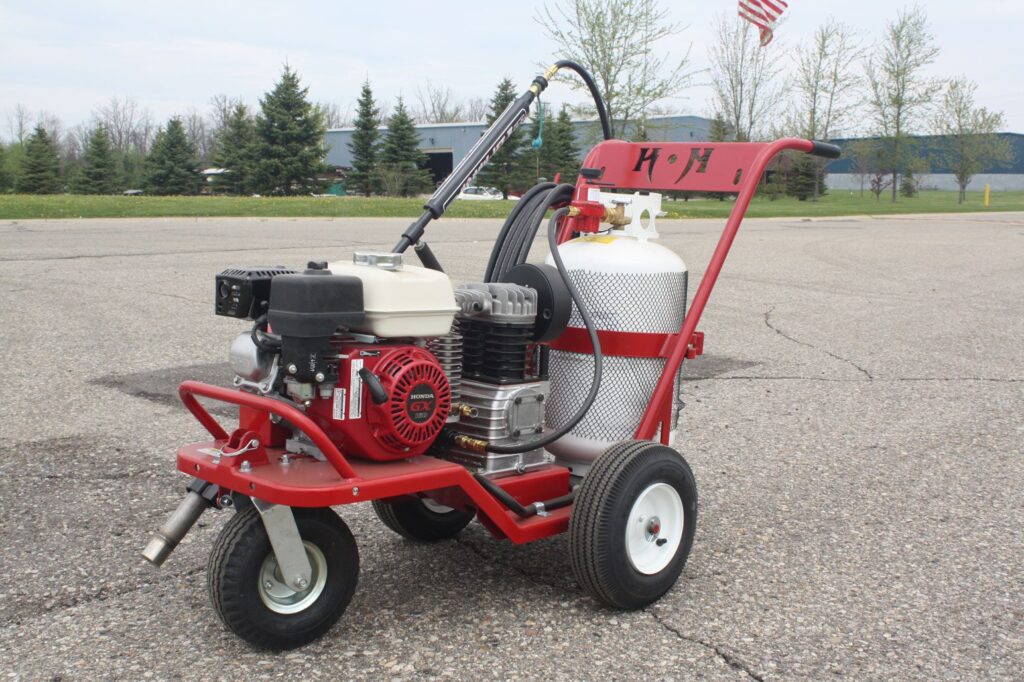

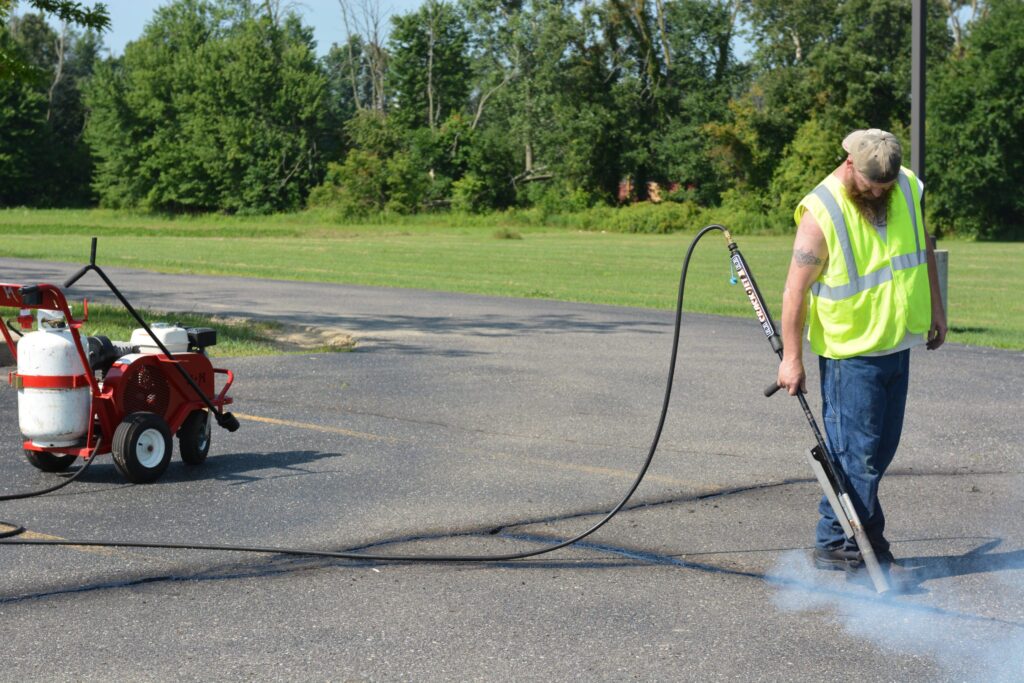

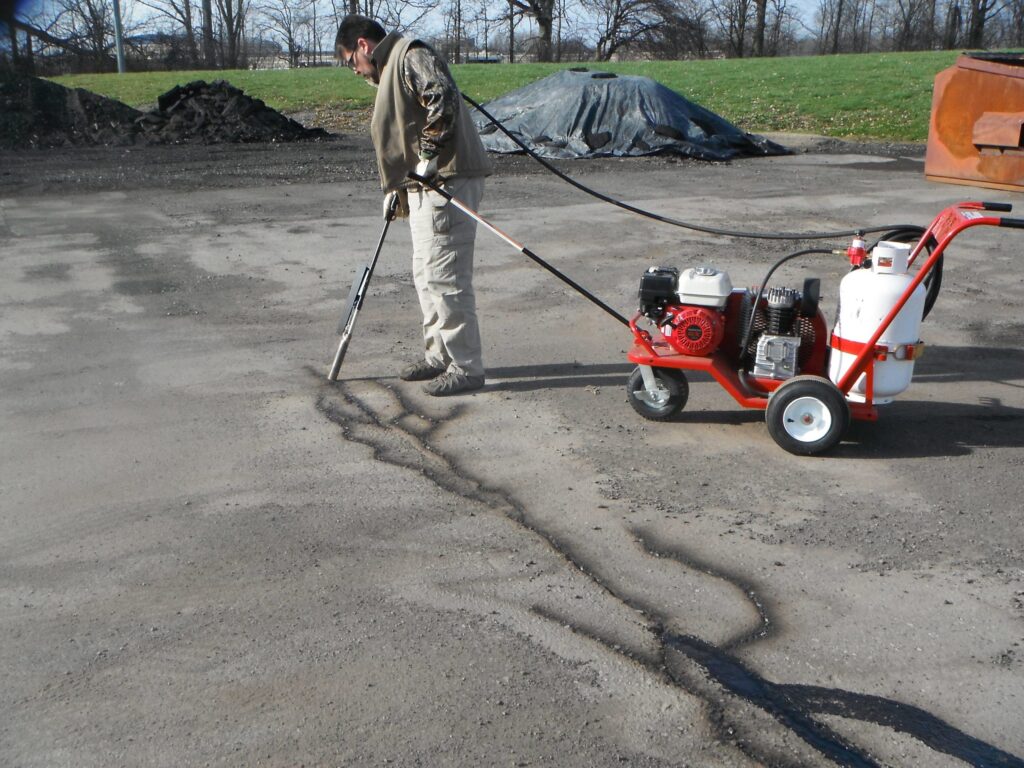

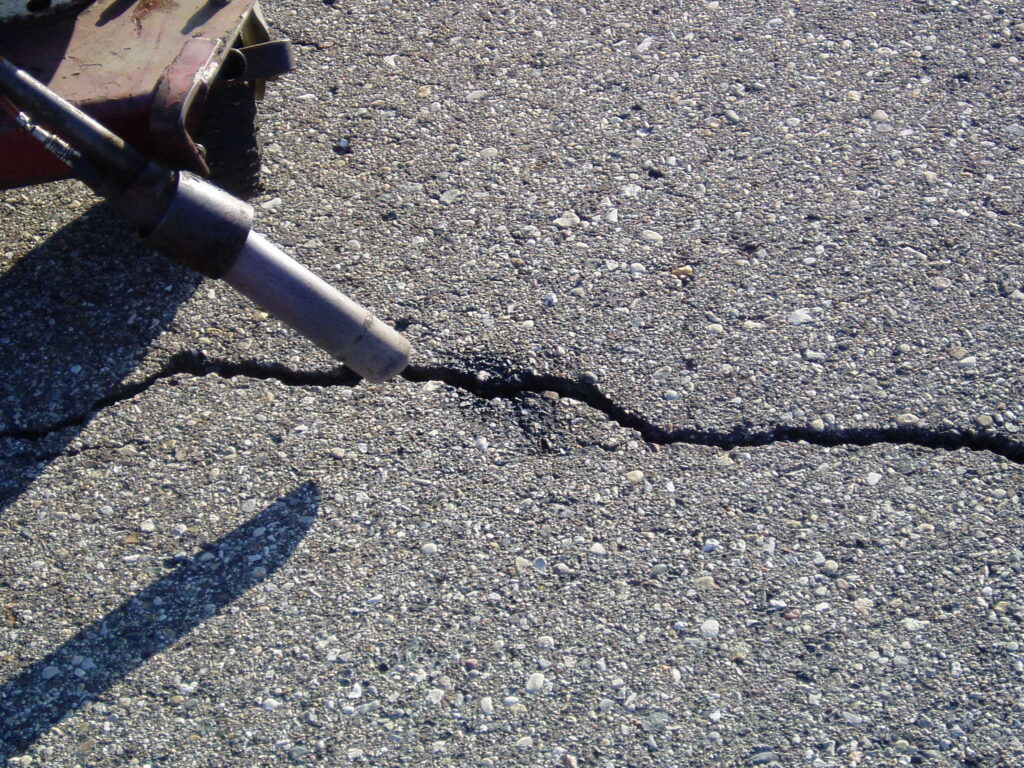

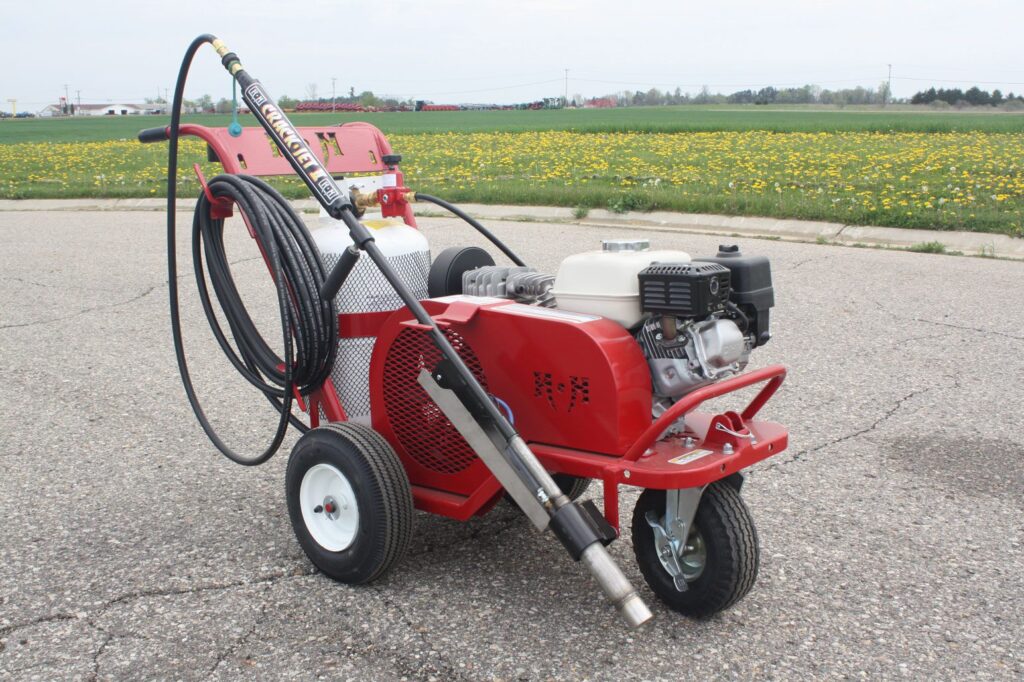

The Crack Jet II cleans, dries, and etches the walls of a crack in one ergonomic motion.

FEATURES:

• Heat: 2800˚ F of heat dries moisture in seconds
• Pressure: 90 CFM of pressure cleans debris and vegetation
• Portability: Designed to walk behind, tow, or, 35 Ft of Hose allows user to walk with just the wand, making even tight spaces easy to access
• Adhesion: Etching walls results in maximum rubber adhesion
• Improved Efficiency: Reduces time and labor costs

SPECS:

• Dimensions (L x W x H) – 55.5” x 28” x 36”
• Weight – 225 Lbs.
• Air Temperature and Output – 2800˚F @ 90 CFM
• Construction – Welded 11G Steel
• Wand – Stainless steel barrel and fittings
• Wand Weight – 7Lbs.
• Wand Length – 60”
• Engine – 5.5HP Honda

*Specifications are subject to change without notice
